Name: D055030FMX Diablo 5‑1/2 in. x 30 Tooth Steel Demon Saw Blade for Metal
Brand: Diablo
SKU: db_d055030fmx
Availability: PreOrder

Description

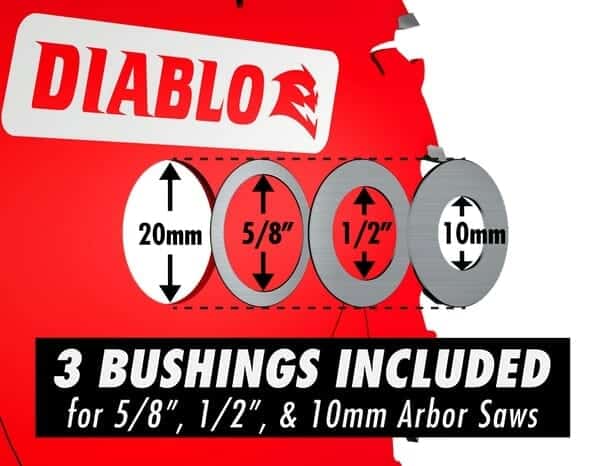

D055030FMX Diablo 5‑1/2 in. x 30 Tooth Steel Demon Carbide-Tipped Saw Blade is for metal cutting and produces fast, accurate cuts in mild steel without bogging down your cordless saws battery. D055030FMX Diablo 5-1/2 in. x 30 Tooth Steel Demon Carbide-Tipped 20 mm Saw Blade includes three additional bushings that allow your blade to fit on 1/2 in., 5/8 in., or 10 mm arbor saws. The 30 Tooth Steel Demon Carbide-Tipped Saw Blade features Diablo-made TiCo Hi-Density Carbide engineered exclusively to deliver up to 40 times longer life compared to 1 standard bonded abrasive disc in mild steel applications. The Steel Demon Carbide Saw Blade is designed with a Triple Chip Grind (TCG); the blade’s 30 teeth produce clean, burr-free finishes, virtually eliminating any rework. The D055030FMX’s thin kerf minimizes material removal and requires less cutting power, delivering fast, clean cuts.

Included

(1) D055030FMX Diablo 5‑1/2 in. x 30 Tooth Steel Demon Carbide-Tipped Saw Blade for Metal

Features

Diablo made TiCo Hi-Density Carbide specifically designed for mild steel applications to provide maximum performance, superior cuts, and longer life vs. standard grinding discs.
Triple Chip Cutting action reduces sparks and the possibility of needing “hot” permits
Optimized blade design reduces wandering and deflection of metal, creating precise cuts that require virtually no re-work
Advanced Laser Cut Stabilizer Vents trap noise and vibration for maximum stability, keeping the blade cool for straight, accurate cuts
Tri-Metal Shock Resistant Brazing, a three-metal brazing system, allows Cermet II teeth to withstand extreme impact for maximum durability
Laser Cut Thin Kerf Design provides less resistance and heat build-up for ease of cut, accuracy, and long cutting life in cordless or corded saws
Perma-SHIELD® coating resists heat build-up by protecting the blade against gumming and corrosion
Laser Cut Arbor reduces vibration and premature wear for accurate blade rotation when in use
Circular saw blades create a controlled cutting action resulting in larger chip sizes that generates less dust and airborne contaminates versus standard grinding discs
Ideal for mild steels with 1/8” maximum wall thickness: steel studs, angle iron, channel, flat bar, EMT conduit
Ideal for mild steels, such as threaded rod, with 1” maximum diameter
Optimized for 1/2", 5/8”, 10mm and 20mm corded and cordless trim saws
Compatible with: DeWalt (20mm arbor), Makita (5/8” arbor), Black & Decker (1/2” arbor), Ryobi (10mm arbor), Porter Cable (10mm arbor) and Craftsman (10mm arbor)
Max RPM: 6000
Ideal For: Steel Studs, Angle Iron*, Flat Bar*, Channel*, EMT Conduit, All-thread** Note: *Mild Steel only - 1/8" max. wall thickness **Mild steel only - 1" max diameter
Suggested Projects: Metalworking

Specifications

Arbor :	20mm
Diameter :	5-1/2"
Hook Angle :	2°
Kerf :	.059"
Plate :	.039"
Teeth :	30 TCG
Max RPM :	6000

Video

Q & A

Why should I choose Diablo?

Diablo is the most innovative premium brand of cutting tools and abrasives specifically designed for the contractor and remodeler to provide superior performance while withstanding the most extreme conditions. Diablo products consistently provide high-quality results every time saving you time and money.

They maximize the cutting life of all their products and are in compliance with quality control standards, assuring consistent performance and customer satisfaction.

Where are these products manufactured?

Diablo and their parent company, Freud Tools, have manufacturing facilities in Italy, Switzerland, and the USA.

Should I get my tools professionally sharpened?

Diablo does recommend the use of authorized sharpening services to maintain "like new" tool performance. Diablo requires "extremely tight tolerances" which may not be met by individuals lacking the necessary experience and tools.
