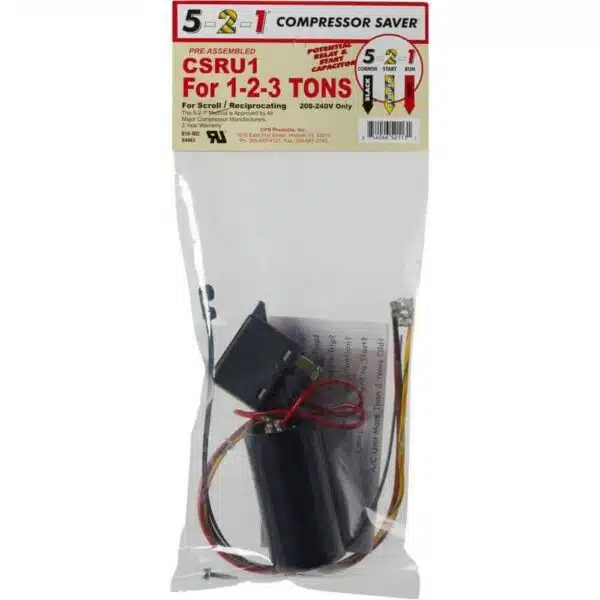

CPS 5-2-1 CSRU1 Compressor Saver Kit Hard Start Capacitor with Relay For 1-2-3 Tons
An air conditioner’s compressor consumes more power on start-up than any other device in the home. In-rush current can damage the compressor’s motor, which may start up more than 10,000 times in a single cooling season.
A 5-2-1® Compressor Saver® significantly reduces the amount of time the compressor is on start-up overload.

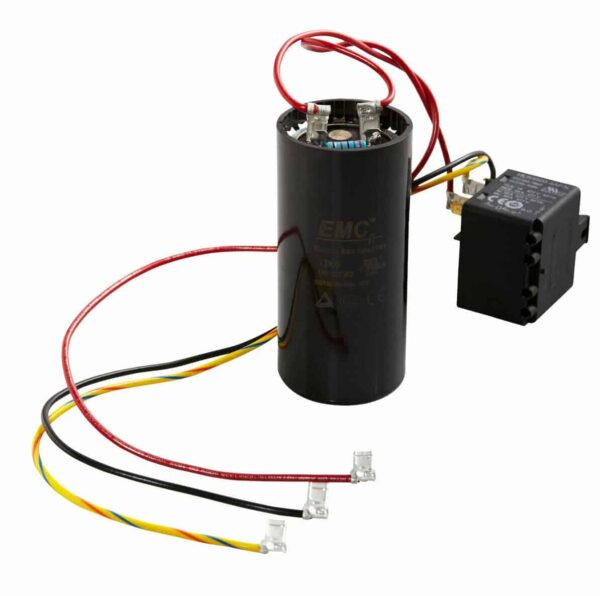

The CPS 5-2-1 CSRU1 uses a powerful multi-layer starting capacitor and a smart switch that gives the compressor the boost it needs to start up quickly and draw less power, thus saving your customers money too.

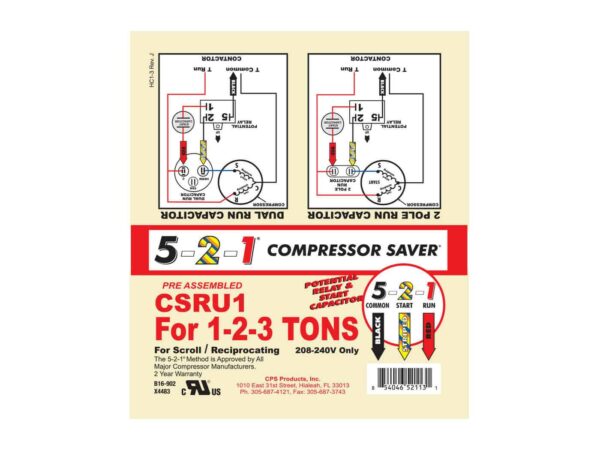

There are only 3 color-coded wires which need to be connected. The Black wire will be connected to the Common side of the compressor. The Striped wire will be connected to the Start winding of the compressor and the Red wire will be connected to the Run winding of the compressor. Remember–5,2,1,=Common, Start, Run.
Only trained and qualified service personnel should install this kit. Most states, countries etc. may require the installer to be licensed. Please check with your local government agency.
Always disconnect the power source before attempting to install this kit. Failure to do so may result in severe electrical injury or even death.
Failure to properly install this kit can and will cause permanent damage to the compressor and related components.
|FLA:||16 A; 277 V; 60 Hz|
|RES:||35 A; 277 V|
|le:||16 A; 400 V; 60 Hz|
|lth:||50 A; 400 V|
|CPS 5-2-1 CSRU1 Compressor Saver Kit Hard Start Capacitor|
|Base Unit of Measure :||Unit(S)|
|Product Height :||6 IN|
|Product Width :||1.8 IN|
|Gross Weight :||0.7 LB|
|Hertz :||60 hz|
|Product Length :||6 IN|
|Max Torque :||1 Tons - 3 Tons|
|Accessory Type :||Start Kit|
I used this on a unit that had been condemned as locked rotor...3 ton unit and it would not stat, at first...This system kicked it off immediately...Ran it for a while, stopped it, let it equalize and hit it again...Did this several times..Fast start every time...I was treated like a hero, felt like one too...These work.
