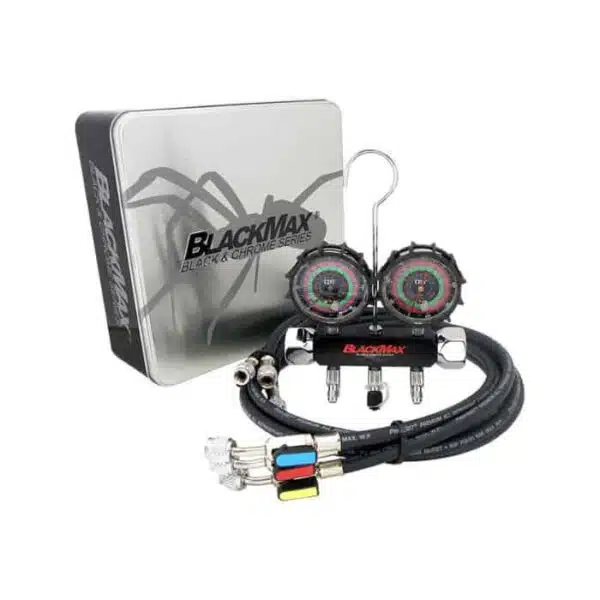

CPS BlackMax MBH4P5EZ 2-V Manifold and Gauge Set

$19258

Available on backorder

FREE delivery over $99

Easy 30 day return (Domestic)

Easy International shipping

Need Help? Speak with our HVAC and tools experts. Call or text (786) 239-7444.

Description

CPS BlackMax MBH4P5EZ 2-V Manifold and Gauge Set w/ 60″ Ball Valve Hoses from the Black & Chrome series comes with 60″ Ball Valve Hoses and is compatible with refrigerants: R134a, R22, R410a, R404. The CPS MBH4P5EZ BlackMax® Black & Chrome series two valve anodized aluminum block body comes with ¼” SAE 45° fittings, Triple Seal™ piston valves, easy-to-read three ⅛” (80mm) Class 1.0 accuracy gauges, protective gauge boots, extra access port in the center with Schrader® valve, premium 5ft Pro-Set® Black & Chrome hoses with 45° anti-blowback valves on end and hanging hook.

The CPS BlackMax MBH4P5EZ 2-V Manifold and Gauge Set w/ 60″ The HVAC technician designs ball Valve Hoses. The diaphragm valve is designed to last and uses a swivel switch seat to assure a perfect seal and prevent additional wear on the diaphragm. The large hand knobs cover the valve stem to keep dirt and debris away from the diaphragm and threads. Utilizing fingertip pressure, the hand knobs are designed to open and close with one complete turn. Superior for deep vacuum service. The gauges were designed with the user in mind. Flutter-free pointer provides steady and accurate pressure readings without using fluids that may eventually leak and shock-resistant suspended movement that seldom needs recalibration.

The Vortech Deep Vacuum Valve System is an advanced diaphragm valve system. It is certified to 15-micron vacuum rating using the precision-machined Teflon core, which provides a full unrestricted refrigerant flow that allows a light touch valve operation.

The proprietary Triple-Seal Valve System is engineered for superior performance using an innovative three Neoprene o-ring design.
  • Back seating o-ring seals valve nut when fully open
  • Floating nylon sealing disk
  • Valve stems retract fully to provide maximum flow
  • Mirror-like port finish for smooth valve movement

CPS Products is a business built by technicians for technicians. They have designed Tools for the Professional Service Technician and have a comprehensive range of Leak Detection technologies, Smart Diagnostic tools, and proven Maintenance Solutions since 1989.

  • CPS BlackMax MBH4P5EZ 2-V Manifold and Gauge Set
  • Anodized aluminum manifold with large easy grip hand knobs
  • Diaphragm valves with swivel seats for more positive seal and less wear
  • Flutter free gauges
  • Extra large port holes for faster recovery or charging
  • Easy to read dial faces
  • Shock resistant movement
  • One full turn positive open and close valves
  • Extra large sightglass
  • Vortech Deep Vacuum Valve System
  • Triple seal piston valves
  • Protective gauge boots
    CPS BlackMax MBH4P5EZ 2-V Manifold and Gauge Set
    Body Type : 2 valve anodized aluminum body with ¼” SAE 45° fittings
    Refrigerant Scales : R-134a, 22, 404A, 410A
    Valve Type : Triple Seal piston valves
    Gauge Type : 3 ⅛” (80mm), Class 1.0 with internal silicon dampening cup for Flutter-Free operation
    Gauges High Side Red : 0 to 800 psi
    Gauges Low Side Blue : 30 in Hg to 500 psi
    Gauge Accuracy : +/-1.00%
    Vacuum Port Size : 1/4 in
    Pressure Scales : PSI
    Temperature Scales : °F
    Hoses : 3 premium 5ft Pro-Set Black & Chrome Pro-Set hoses with ¼” SAE 45° ball valves on ends
    Type of Display : Analog
    Power Source : Corded-electric
    Weight : 5 lbs
    Dimensions : 10.75" x 4.10" x 11"
    Packaging : Custom tin box
    Standards : UL/SAE
    Warranty : 1 year
    Made in the : USA
    Is all the chrome on the CPS BlackMax MBH4P5EZ actually chrome or just plastic?

    This product has cast aluminum chrome plated knobs, and the fitting is brass chrome plated with an anodized aluminum body. It's the real deal.

    Are the gauges on the CPS MBH4P5EZ intended to be at an angle on the manifold?

    Yes they are mounted at an angle.

    Does this manifold have the “large sight glasses with vortech valves”?

    Yes, this product includes the large sight glass with Vortech valves.

    No product videos available.

    • (1) CPS BlackMax MBH4P5EZ 2-V Manifold and Gauge Set
    • (1) Set of 3 60" Premium Ball Valve Hoses
