Fieldpiece SC480 600A Clamp Meter Dual Display Power

$33575

Brand: Fieldpiece GTIN#: 0872641004224 MPN#: SC480

Available on backorder

FREE delivery over $99

Easy 30 day return (Domestic)

Easy International shipping

Need Help? Speak with our HVAC and tools experts. Call or text (786) 239-7444.

Description

The Fieldpiece SC480 600A Clamp Meter Dual Display Power is a mid-sized TRMS Wireless Power Clamp Meter with direct integration with the Job Link System App and all the essential features service technicians need to install and service and troubleshoot any HVACR system. The Fieldpiece clamp meter is ideal for obtaining electrical measurements on mini splits and includes Molex tips for hard-to-read circuitry. A low pass filter provides reliable voltage readings on variable frequency drives (VFDs), tests three-phase power lines with two leads, and maintains wireless connection directly to a mobile device at 1000 feet (305 meters). The clamp meter has a safety rating of CAT IV at 600 V and CAT III at 1000V.

The Fieldpiece SC480 TRMS clamp meter is excellent for troubleshooting mini-split systems. By utilizing the RCT2 Molex probe tips, you can reach those cramped mini-split connectors to measure voltage and resistance. In addition, you can measure frequency directly with the clamp jaw.

The clamp meter will also help determine system efficiency by directly measuring the system’s power consumption (kW). This can be helpful to provide your customers with this information and ways they can implement energy-saving measures to lower their energy bills.

You can take more accurate VAC and AAC readings on variable frequency drive with the True RMS sensing technology and measure the starting amp draw of a compressor with Inrush current mode. One of the most failure-prone components in an HVACR system is the capacitor. The capacitance test allows a service technician to test questionable motor start and run capacitors to determine when a capacitor needs to be replaced.







  • Fieldpiece SC480 Wireless TRMS Power Clamp Meter
  • Works with Job Link App
  • °F and °C
  • Hold/Max/min
  • High voltage LED
  • Beeper warning
  • Non contact voltage
  • LED and beeper
  • Continuity LED and beeper
  • Diode test
  • Easy temp cal
  • Microamps DC.
  • Frequency (Hz) through the clamp
  • Low ohm range for motor windings
  • CATIII 1000V
  • CATIV 600V
  • 0.01AAC resolution
  • Backlit display
  • Auto-Power-Off
Fieldpiece SC480 Wireless TRMS Power Clamp Meter
Display : 10000 count dual display
Backlight : 5 minute duration with auto-off. Blue color
Overrange : (OL) or (-OL) is displayed
Measurement rate : 3.3 times per second, nominal
Zero : Automatic
Operating environment : 32°F to 122°F (0°C to 50°C) at <70%RH
Storage temperature : -4°F to 140°F (-20°C to 60°C), 0 to 80%RH (with battery removed)
Accuracy : Stated accuracy @ 73°F±9°F (23°C±5°C), <75%RH
Temperature coefficient : 0.1 x (specified accuracy) per °C [0°C to 19°C (32°F to 66°F), 28°C to 50° C (82°F to 122°F)]
APO (Auto Power Off) : Approx. 30 minutes
Power : Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22
Battery life : 100 hours typical alkaline
Low battery indication : Battery icon blinks and "batt" is displayed when the battery voltage drops below the operating level
Dimensions : 247mm(H) x 79mm(W) x 48mm(D)
Weight : Approx. 345g including battery
Altitude : Up to 6562 ft (2000m)
Overload protection : 1000VDC or 750VAC rms unless otherwise stated
Test leads : Use UL listed test leads that comply to UL61010-031 rated CATIII 600V or above. Included test leads are gold-plated and have removable safety caps.

No product questions available.

  • No product manuals available.

No product videos available.

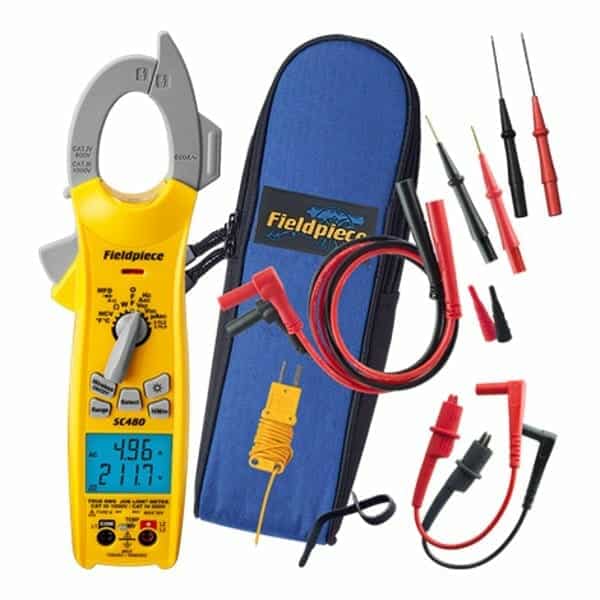

  • (1) SC480
  • (1) ATB1 Thermocouple
  • (1) ASA2 Gater Clip Leads
  • (1) ADLS2 Silicone Leads
  • (1) ANC12 Padded Case
  • (1) RCT2 Molex Tips
