Fieldpiece SRS3 Wireless Refrigerant Scale
$33065
Brand: Fieldpiece GTIN#: 872641003302 MPN#: SRS3
Description
REPLACED BY SR47
The Fieldpiece SRS3 Wireless Refrigerant Scale with Remote 252 lbs Capacity combines modern wireless electronics and rugged materials to perform at the high level you demand. The platform is made of thick aluminum to maintain accuracy over the product’s life. The rubber pad and bumpers cushion both the tank and the scale itself. A new wireless protocol sends platform measurements to the included remote display and the Fieldpiece Job Linkยฎ System Mobile App. Platform electronics are sealed to block the occasional moisture seen from rain and splashing. Hang the remote display from a condenser or anywhere metallic and easy to see. The magnetic folding hat holds it right where you put it.
What's Included

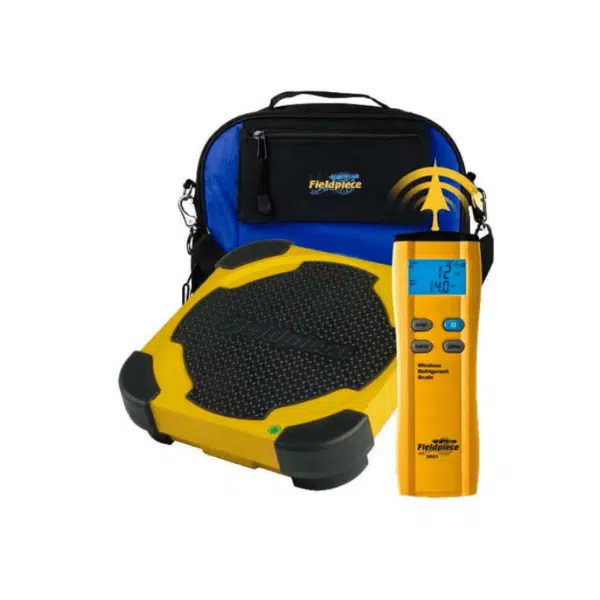

- (1) Fieldpiece SRS3 Wireless Refrigerant Scale Platform and Remote

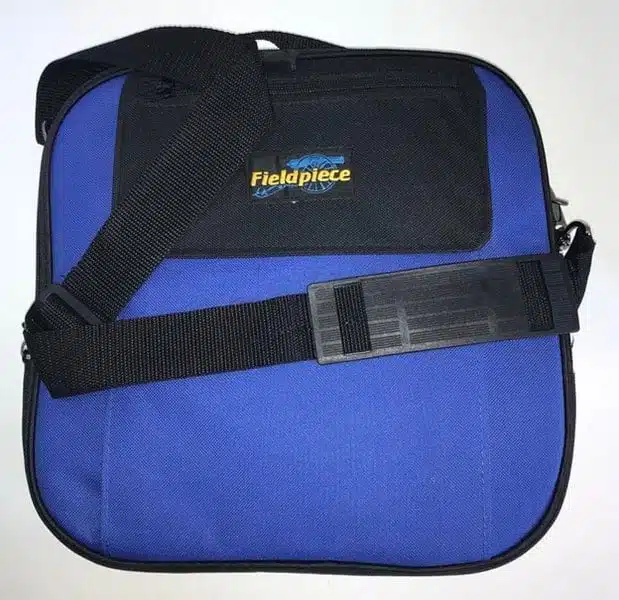

- (1) Rugged Nylon Case with Carrying Strap
- (1) Standard 9-volt Battery (remote) Installed
- (6) AA Batteries (platform) Installed
- (1) Operatorโs Manual
Features
- Fieldpiece SRS3 Wireless Refrigerant Scale
- Connect to Job Link System Mobile App
- Send live weights directly to your device
- Record and document refrigerant use
- Long range wireless
- Flat top bumpers for larger cylinders
- Max load 252 lbs (114 kg)
- View units your way
- Pounds and ounces
- Pounds only
- Ounces only
- Kilograms and grams
- Kilograms only
- Grams only
Specifications
| Fieldpiece SRS3 Wireless Refrigerant Scale | |
| Over range : | โOLโ is displayed |
| Maximum load : | 252 lbs (114 kg) |
| Auto power off : | 30 minutes of inactivity (no change in weight or buttons pressed), (APO can be disabled) |
| Backlight : | Blue, turns off in 60 seconds if no buttons are pressed |
| Accuracy | |
| Resolution and Units : | lb oz (0.25 oz), lb (0.1 lb), oz (0.1 oz), kg g (10 g), kg (0.1 kg), g (10 g) |
| Temperature coefficient : | 0.1 x (specified accuracy) per ยฐF |
| Wireless Range : | 1000 feet (305 meters) |
| Radio Frequency : | 2400 MHz |
| Battery Type Remote Display : | 9V, NEDA 1604, JIS 006P, IEC 6F22 |
| Battery Type Platform : | 6 x AA, NEDA 15A, JIS UM3, IEC LR6 |
| Battery Life : | is displayed when the battery voltage drops below the operating level |
| Battery Life Remote Display : | 80 hours typical alkaline (without backlight) |
| Battery Life Platform : | 200 hours typical alkaline |
| Operating environment : | 32ยฐF to 122ยฐF (0ยฐC to 50ยฐC) at <75% RH |
| Storage temperature : | 4ยฐF to 140ยฐF (-20ยฐC to 60ยฐC), 0 to 80% RH (with battery removed) |
| Weight : | 7.3 lbs (3.3 kg) |
| Specifications good in ambient conditions : | 73ยฐF ยฑ9ยฐF (23ยฐC ยฑ5ยฐC), <75% relative humidity |
Questions
Do you need to use the remote or can you just use joblink on the fieldpiece wireless scale?
You can just use joblink. You don't need to use the remote unless you want to.
How do you charge scale battery?
The scale is powered by 6x AA batteries and the remote display is powered by a 9V battery.
Is this srs3 scale a weighing machine?
It's for HVAC, for weighing in and out refrigerants. Scale won't handle weight of a person.
