Inficon 700-100-P1 QS5 Vacuum Pump

$224.99

Out of stock

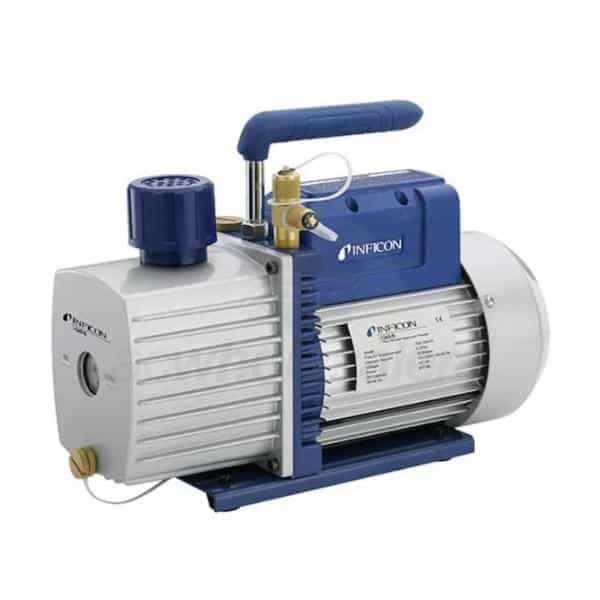

Inficon 700-100-P1 QS5 Vacuum Pump


Fast, Efficient, and Reliable

The INFICON QS5 Vacuum Pump is designed for quick, deep evacuation as well as affordability and durability. QS5 is a two-stage, rotary vane pump with 5 CFM rated displacement for ultimate vacuum down to 15 microns. Features such as a large oil, easily accessible oil drain and innovative oil-trapping exhaust/demister allow technicians to make easier, more efficient service calls. The pump’s design includes a comfortable “no slip” grip for easy carrying and its solid construction delivers maximum durability. All this is backed by an industry-leading 2-year replacement warranty. Among its multiple advantages are that the gas ballast allows pumped water vapor to be exhausted to atmosphere instead of accumulating in the oil reservoir, the fan directs airflow for maximum heat transfer which keeps the pump cooler, Anti-backflow on inlet prevents oil from flowing back to the system if there’s a power disruption, and the wide stance and solid base provides greater stability and less chance of the pump tipping over.

Product Features

  • Tethered caps on oil drain and inlets so you won’t drop or lose them
  • Two-stage rotary vane pump provides the ability to quickly pull a deep, 15 micron vacuum
  • Thermally protected motor ensures safe operation
  • Dual voltage operation
  • 2-year replacement warranty
Specifications

  • Type QS5
  • Base unit includes Power cord, one bottle of oil
  • Free air displacement 5 cfm (142 l/m)
  • Motor 1/2 HP, AC
  • Oil capacity 12.5 oz. (370 ml)
  • Weight 24 lb. (10.89 kg)
  • Power Source 115/230 V dual voltage operation
  • Manufacturer Warranty (replacement) 2 year
Weight 27 lbs
Dimensions 16 × 9 × 15 in
