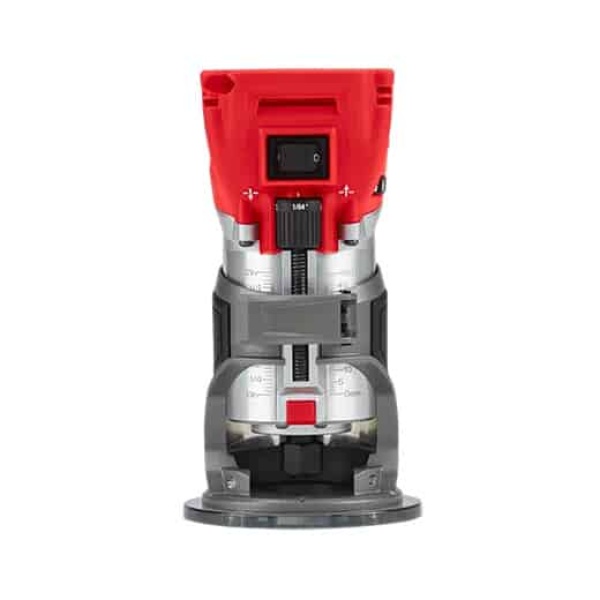

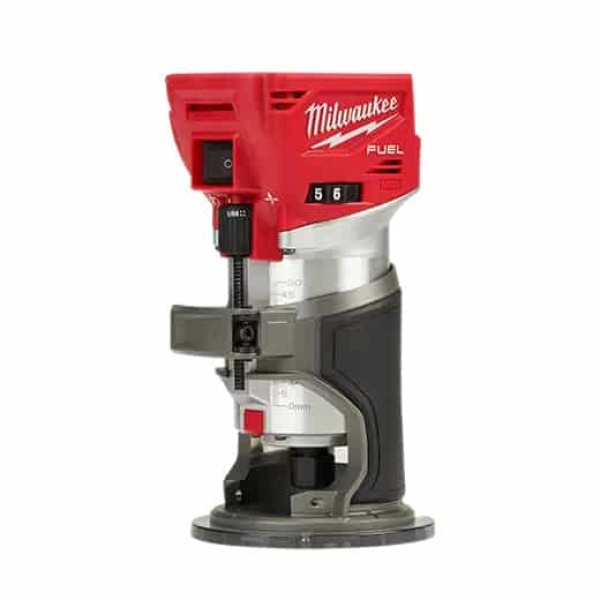

Milwaukee 2723 20 M18 FUEL Compact Router

FREE Delivery Over $100
Easy 30 Day Return


On Backorder. Allow an extra 2-7 days for delivery.

SKU: mw_2723-20 Categories: , Brand:

Need Help? Speak with our HVAC and tools experts. Call or text (786) 239-7444.


The Milwaukee 2723 20 M18 FUEL Compact Router combines power, speed & accurate depth adjustments to deliver clean, precise cuts in a variety of materials & applications. 2723-20 leverages the POWERSTATE™ Brushless Motor & REDLINK PLUS™ electronics. This provides the power of corded 1.25 HP trim routers & best-in-class 31,000 RPM, providing you with power & speed for clean, quality cuts in hard materials. With an M18™ REDLITHIUM™ XC5.0 battery, the cordless compact router cuts up to 250ft of 3/8″ round overs in red-oak, providing all-day run time with fewer trips to the charger. Milwaukee 2723 20 is equipped with a micro-adjust dial & macro-adjust button, you get fast & accurate depth adjustments for actual work. A variable-speed dial with a speed from 10,000 to 31,000 RPM gives you control in all applications. The sturdy 4″ sub-base plate provides stability, & dual-LED lights illuminate your work surface—plunge base & offset base compatible (sold separately). Truly, Milwaukee is performance-driven.


  • (1) Milwaukee 2723 20 M18 FUEL Compact Router


  • POWERSTATE Brushless Motor: Power of corded compact routers and higher SPM to complete cuts in hard woods
  • REDLINK PLUS Intelligence ensures maximum performance and protects from overloads, heating and over-discharge
  • REDLITHIUM Battery Pack: Delivers more work per charge and more work over the life of the pack than competitor
  • Variable speed dial ranges between 10,000 and 31,000 rpm, providing precise control for clean edges and details

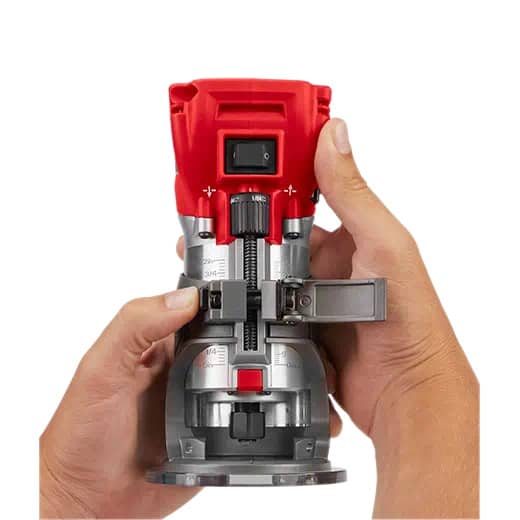

  • Macro Adjust button allows for fast macro-adjustments and 1-1/2" of adjustable range
  • Fine adjustment screw allows for precise adjustments beyond 1/64" increments
  • Tool-free spindle lock privides easy bit changes with one 11/16" collet wrench
  • Accepts 1/4" shank router bits
  • LED light illuminates the cut surface
  • Compatible with Milwaukee Plunge base and Offset base attachments (sold separately)
  • Includes straight edge guide; dust extraction attachment and 5-3/4" sub-baseplate which accepts 1-1/4" template bushings
  • Part of the M18 System, featuring over 175+ tools


Edge Forming : Up to 5/8"
Chamfers : Up to 40 degrees at 1" depth
Rabbeting : Up to 1/2"
Collet / Bit Shank Diameter : 1/4"
Horsepower : 1-1/4 HP
RPM : 10,000 - 31,000 RPM
Micro-Adjustment : 1/64" increments
Maximum Bit Depth Adjustment : 1-1/2"
Battery Life w/ M18 XC5.0Ah : Up to 250' with 3/8" roundover in red oak
LED : Dual LED Lights
Bit Brake : Yes
Motor : M18 FUEL Brushless
