NAVAC NP2DLM Cordless Vacuum Pump 2 CFM

FREE Delivery Over $100
Easy 30 Day Return
Easy International Shipping. Learn more.


On Backorder. Allow an extra 2-7 days for delivery.

Yellow Jacket 93887 MaxFlow Evacuation Hose Kit

SKU: nv_np2dlm Categories: , Tag: Brand:

Need Help? Speak with our HVAC and tools experts. Call or text (786) 239-7444.


The Navac NP2DLM Vacuum Pump 2 CFM is a contractor’s dream: cordless, compact, and convenient. Featuring a brushless DC motor, this lightweight, highly efficient vacuum pump is perfect for any job. With a high-performance lithium ion battery that provides higher capacity and longer running time, you can bring the NP2DLM battery operated vacuum pump on any service call, at any location. The Navac cordless vacuum pump is highlighted by its mobile design, allowing it to be compact and easy to carry. Lastly, the isolation ball valve and twin cylinders make this vacuum pump easy to use, reliable, and ensure maximum vacuum capacity. After all, you’re getting, “Leading Technology, Superior Quality, and the Best Experience. Empowering you to work smarter!”


  • (1) Navac NP2DLM Cordless Vacuum Pump 2 CFM
  • (1) NB1 Li-Ion 18V 5Ah Battery
  • (1) NC2 Battery Charger

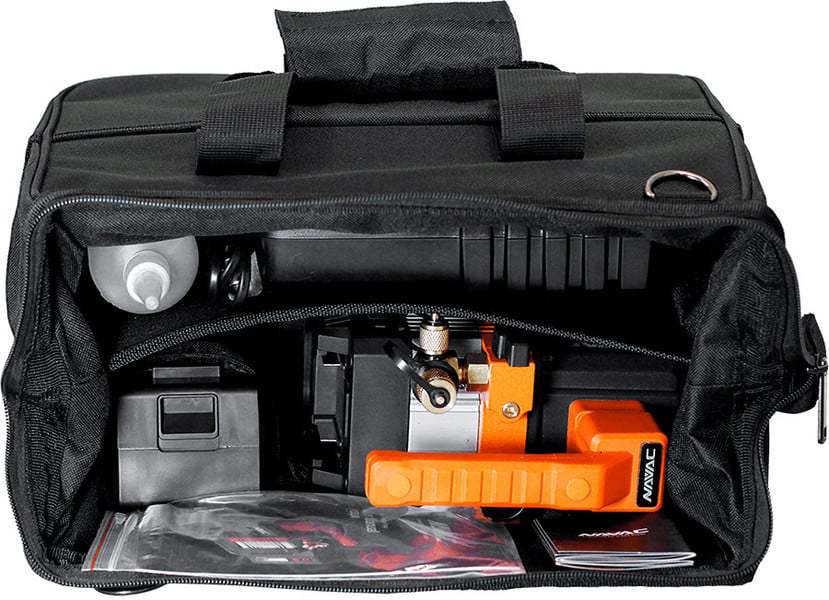

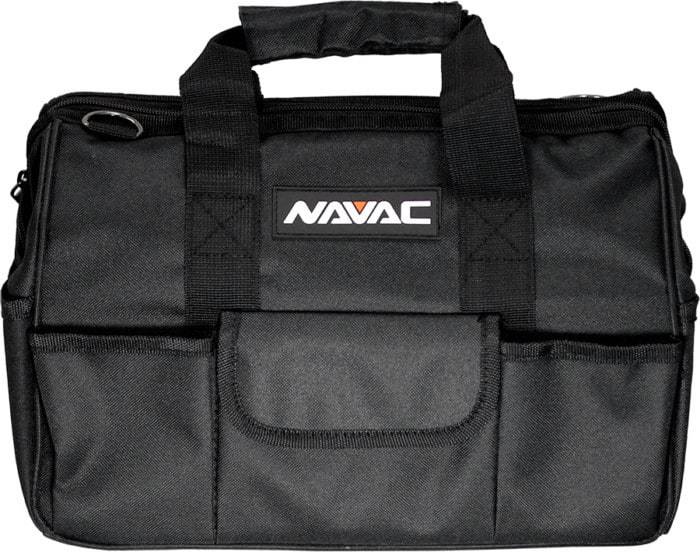

  • (1) Black Carrying Bag
  • (1) 4.4 oz bottle of NAVAC Vacuum Pump Oil
  • (1) Adjustable Shoulder Strap
  • (1) User Manual
  • (1) Product Booklet


  • Integrated pump structure makes for better vacuum levels
  • Forced oil lubrication ensures vane sealing, cooling, and high reliability
  • Large oil lens prevents oil shortage
  • Ignition proof design with electronic starter
  • Brushless DC motor that's lighter and smaller than the competition at only 8.4 lbs
  • Brushless DC technology means more efficient pumping
  • High performance Li-Ion battery makes pumping more convenient, holding a charge for up to one hour
  • Compact design makes the pump easy to carry and store
  • Internal check valve prevents oil backflow
  • Built in isolation ball valve
  • Eight pockets, two internal dividers, and an adjustable shoulder strap make the carrying bag a great asset


Battery : 18V, 5Ah Li-ion
Flow Rate : 2 CFM
RLA : 7.5 A
Ultimate Vacuum : 23 microns
Pump Design : Dual stage
Inlet Port : 1/4″, 3/8″ Flare
Oil Capacity : 5.1 oz
Dimensions : 9.2" × 3.5" × 7.5"
Weight : 8.4 lbs (with battery)
Manufacturer Warranty : 2 years


Q & A

What is covered under the Navac NP2DLM Vacuum Pump warranty?

"NAVAC Inc. GUARANTEES all NAVAC products to be free of defective material and craftmanship which could affect the life of the product when used for purpose for which it is designed. This warranty does not cover items which have been abused, misused, or improperly maintained, (including failure to use the correct type of vacuum pump oil).

Can I use a Makita battery on the Navac cordless vacuum pump?

"On some earlier production units, it is possible to connect a Makita battery to the pump. It is highly suggested that it NOT be used. Various Makita batteries have different specs which can cause adverse effects to the pump; these include reduced performance, short running time, overheating of the battery, and possible explosion. Also note, using un-authorized batteries or power sources will also void the warranty." - NAVAC Inc.

The same warnings apply to other battery manufacturers.

How long will it take the NAVAC NP2DLM to vacuum pump a 4 ton system?

In a recent field test the NAVAC NP2DLM pumped a 4 ton system in less than 20 mins.

Customer Reviews

Based on 1 review
Very impressive

I'm impressed with it so far very light and easy to carry.
