RCO410 SUPCO Refrigerator Relay Overload Start Run Capacitor 1/4 1/3 HP 3 n’ 1
$1299
Brand: Supco GTIN#: 687152023752 MPN#: RCO410
Description

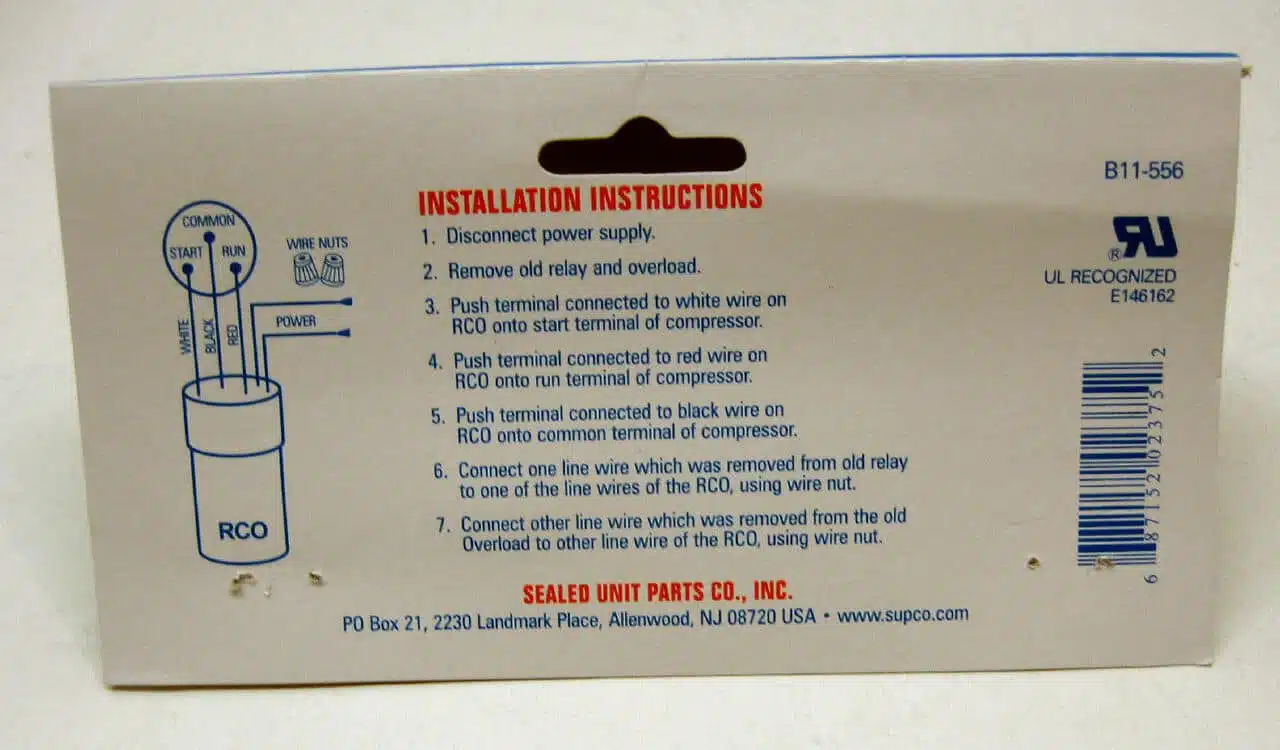

The Supco RCO410 is a solid-state Hardstart Relay, which includes relay, overload, and start capacitor. The RCO410 is a useful tool to rejuvenate older refrigeration systems both with or without run capacitors. Rated for 1/4 HP to 1/3 HP compressors with a maximum RLA of 6.8 Amps. Easily mount the RCO410 to the system either with the handy clip formed into the side or by screwing it on. The clear and concise wiring diagram and instructions make installation a breeze.
What's Included
- (1) RCO410 Supco Hardstart Relay
- (2) Wire nuts
Features
- Prevents low voltage starting problems
- Direct replacement dryer element for LG® 5301EL1001J
- Nichrome heavy gauge construction
- WARNING: This product can expose you to chemicals including cadmium and cadmium compounds (Prop 65)
- Select the right match to replace refrigerator compressor relay and overload units
- For all capillary systems
Specifications
| Mounting : | Quick connect |
| HP rating : | 1/4 - 1/3 |
| Voltage : | 115V |
| Maximum Continuous RLA : | 6.8A |
| Capacitance : | 243 to 292 MFD |
Questions
Can a 3-In-1 be installed permanently?
Yes, there are customers who have installed 3-in-1’s that have lasted close to a decade if not more.
What size 3-in-1 should I choose?
Sizing is based on the HP rating of the compressor, and the continuous running amperage. For the RCO410 the appropriate HP range is between 1/4 - ⅓, and the maximum continuous running amperage is 6.8A.
What is the difference between the RCO and URCO series?
The URCO has an additional set of leads to accommodate a run capacitor.
