Stabila 03165 LA-5PG Green Beam 5 Point/Dot Laser

$36000

Available on backorder

FREE delivery over $99

Easy 30 day return (Domestic)

Easy International shipping

Need Help? Speak with our HVAC and tools experts. Call or text (786) 239-7444.

Description

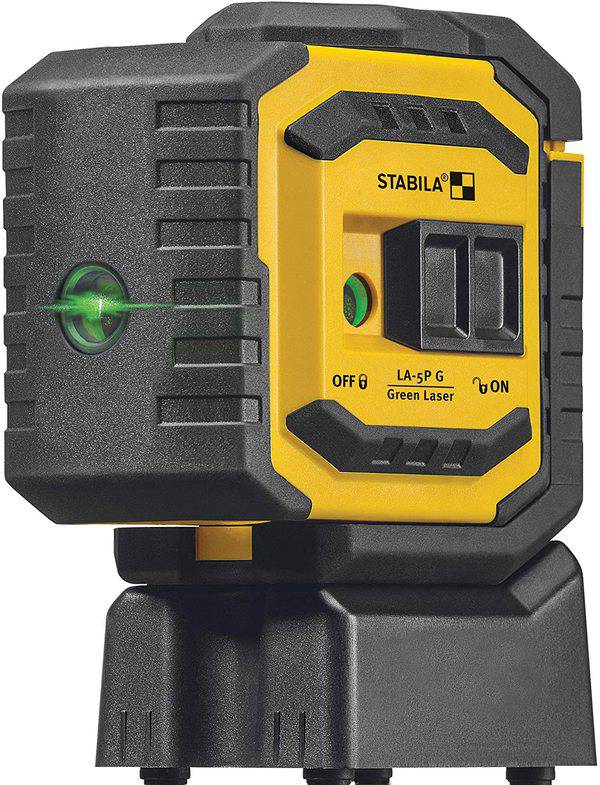

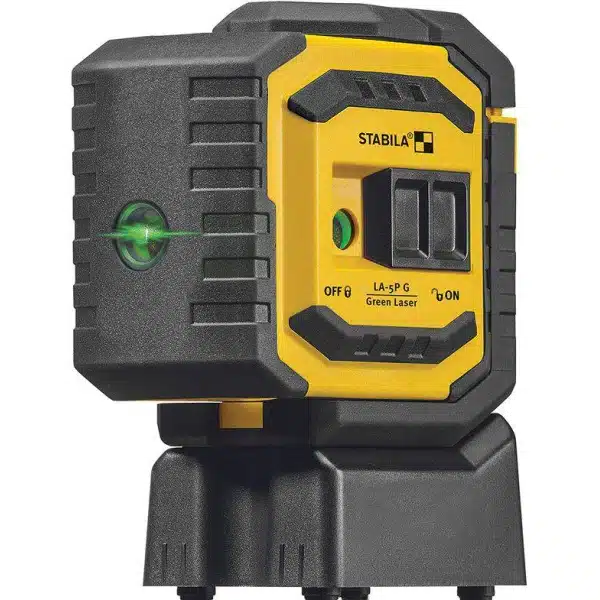

Stabila 03165 LA-5PG Green Beam 5 Point/Dot Laser is visible up to 60 ft. Layout points can be transferred, and right angles can be set in an instant. Stabila 03165 features a mechanical on/off switch and pendulum lock. This durable and compact pouch laser is excellent for framing walls, interior, and exterior. Builders will appreciate the ability to work directly against wood plates and metal tracks, in all conditions, even in brightly lit spaces. The highly efficient LA-5P G laser is powered by 3-AA batteries, providing up to 15 hours of constant run time.

The Stabila LA-5P 5-Point Green Beam Plumb Laser is a functional and versatile laser designed for various construction applications. It features five 635-nanometer green laser beams that are four times more visible than standard laser beams. The up and down plumb points allow transferring measurements from floor to ceiling with an accuracy of ±3/32-inch and ±1/8-inch at 30 feet. For easy layout and precise alignment of right angles and squares, its three horizontal laser points create 90-degree tips and offer an accuracy of ±1/16-inch at 30 feet.

Perfect for indoor use, this plumb laser by Stabila has a measuring range of up to 60 feet. It is self-leveling within ±4.5 degrees and maintains an accuracy of ±3/32-inch at 30 feet. To provide built-in protection and ensure accurate layout points, it permits 360-degree rotation inside its housing.  Its shock-absorbing, soft-grip rubber casing is rated IP54 to withstand dust, rain, and water spray.

The Stabila LA-5P 5-Point Green Beam Plumb Laser is flexible and easily mountable. It is equipped with a V-groove magnetic mount for quick attachment to metal surfaces and comes with standard 1/4-20 threading for tripod connection. It can be fastened to walls with the included wall bracket. It is supplied with three AA batteries and can operate for up to 20 hours. It also consists of a target plate, a belt pouch, and a framing base.

  • The self-leveling STABILA LA-5P G Set features 5-bright GREENBEAM laser, pouch, removable framing base, target plate, metal wall mount plate and batteries.

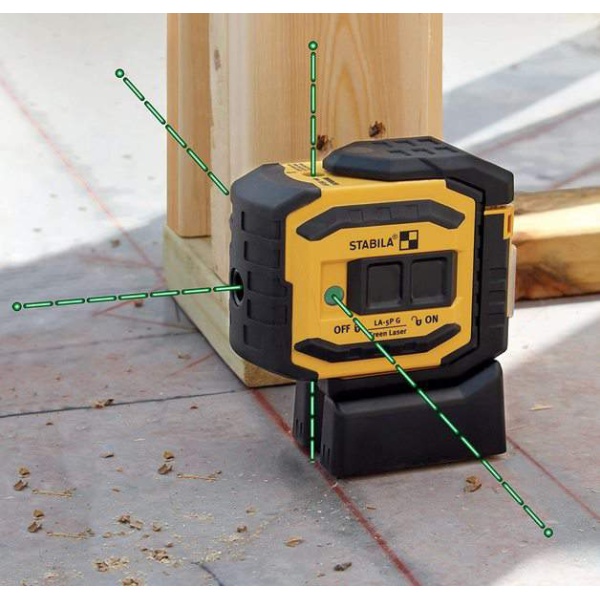

  • Quickly transfer layout points and set right angles, even in brightly lit conditions.
  • The LA-5P G comes with a v-groove rare earth magnet built into the housing for secure attachment to metal.
  • 5 green bright and tight dots are visible up to 60ft.
  • Up dot accuracy tolerance: Will not exceed 3/16 in @ 50ft.
  • Down dot accuracy tolerance: Will not exceed 1/4 @ 50ft.
  • Level dot accuracy tolerance: Will not exceed 3/16in @ 50ft.
  • Square dot accuracy tolerance: Will not exceed 1/8in @ 50ft.
  • Warranty: Up to 2 years from the date of purchase.
  • Mechanical off/on switch with pendulum lock.
  • Self-leveling range: 4.5 degrees.
  • Up to 15 hours of constant run time on 3-AA batteries.
Laser class : 2
Output : < 1 mW
Laser wavelength : 510 - 530 nm
Self-levelling range +/- : 4.50°
Levelling accuracy +/- : 3/16 in @ 30 ft
Laser beam accuracy (up) +/- : 3/32 in @ 30 ft
Laser beam accuracy (down) +/- : 1/8 in @ 30 ft
Measuring range of visible point : 60 ft
Operating life : 7 Hours
Protection class : IP54
Tripod connection : 1/4"-20
How does the warranty process work?

<p>"We will repair, without charge, any defects due to faulty materials or workmanship for two years from the date of purchase. Must have copy of receipt for warranty service." -STABILA warranty statement</p> <p>Accessories: Tape Measures, Tripods, Cases, Grade Rods, Etc come with 30 Day Warranty against manufacturer defects from the date of purchase</p> <p>"Please return your level(s) to STABILA for evaluation. STABILA will inspect and return or replace your level(s) within 48 hours of receiving them at our facilities. Please include the following information with your level: <ul> <li>Name</li> <li>Return address</li> <li>Phone number</li> </ul> You may also fill out and print the shipping label and return form available <a href="https://www.stabila.com/files/default/pdf/us-en_fr/STABILA_US_Level_warranty_form.pdf" target=_blank>here</a>. Please include a return form for each level that you are returning."</p> <p>Please also be aware that the "<b>customer covers freight costs for items shipped to STABILA Warranty Centers and will pay return shipping costs for all non-warranty repairs and/or non-repairable laser and levels.</b>" STABILA states, "<b>we will hold items for 90 days after sending quote before disposing of items.</b>"</p> <p>For reference the STABILA USA Return Address is,<br> <br> STABILA Inc.<br> 2101 Galvin Drive<br> Elgin, IL 60124<br> </p> <p>If you would like more information, please visit STABILA's warranty page <a href="https://www.stabila.com/en-US/warranty.html" target=_blank>here</a>.

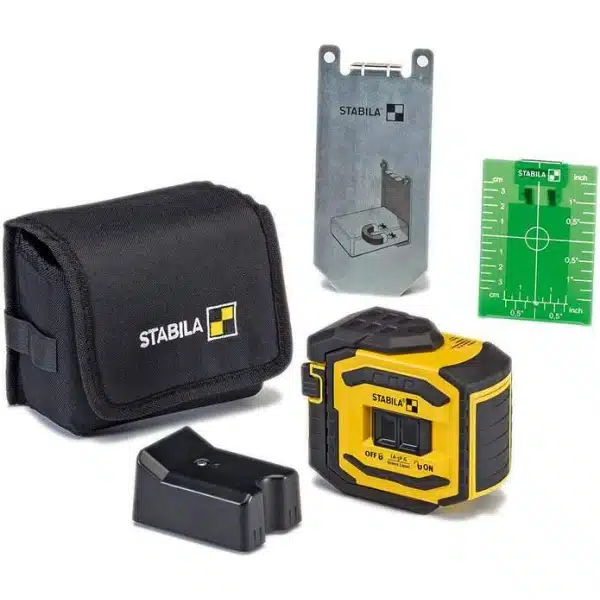

  • (1) LA-5PG 5-point laser
  • (1) metal wall mount plate
  • (1) green plastic target plate
  • (1) pouch
