Testo 550s Digital Manifold Smart Kit (0564 5502 01) with Wireless Clamp


FREE Delivery Over $100
Easy 30 Day Return

$499.00

On Backorder. Allow an extra 2-7 days for delivery.

Yellow Jacket 22985 PLUS II 60in Refrigerant Charging Hose Set

Yellow Jacket 22986 PLUS II 72in Refrigerant Charging Hose Set

SKU: tt_0564-5502-01 Categories: , Brand:

Need Help? Speak with our HVAC and tools experts. Call or text (786) 239-7444.

Description

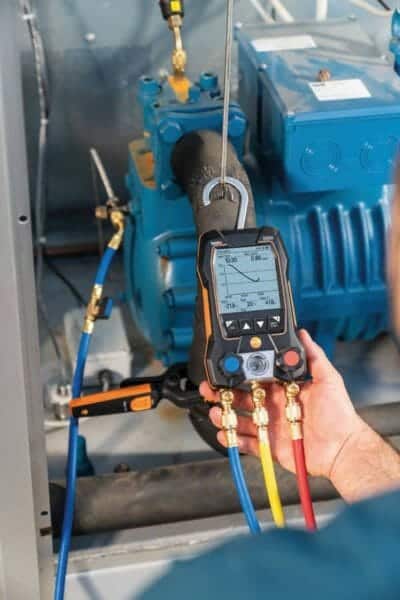

The Testo 550s Digital Manifold Smart Kit (0564 5502 01) with Wireless Clamp Temperature Probes is expertly crafted for wireless measurements in the field of commissioning, servicing, & maintenance of refrigeration, air conditioning, & heat pump systems. You will get the Testo 550s Digital Manifold with 2-way valve block and Bluetooth. The manifold is compact, easily operated with one hand, it has a large display, robust housing and Testo Smart App access.

You will also get two wireless clamp thermometers (Testo 115i), & a rugged transport case. The wireless clamps measure temperature at widely spaced measuring points making your job a lot easier. Measurement data is transmitted wirelessly from the clamp thermometer to the Smart Probes App & can be viewed conveniently on your smartphone or tablet as a chart or in table form. Data reports can even be e-mailed directly to customers as a pdf or Excel file, saving you time & increasing efficiency.

The Testo 550s is discontinued and replaced with this newer version: Testo 550s.

The Testo 550s Smart Kit comes with top of the line measurement technology, a high degree of reliability & smart functions for quick, easy measurements & documentation.

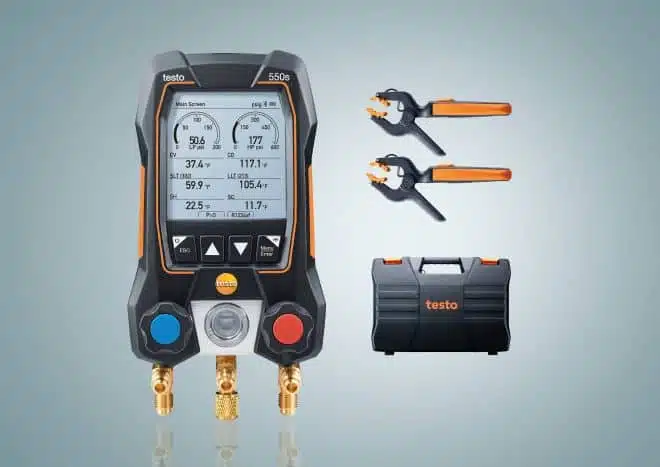

Included

  • (1) Testo 550s Smart Digital 2-Way Bluetooth Manifold (0564 5500)
  • (2) Testo 115i Pipe-clamp Thermometer operated via smartphone (0560 2115 03)
  • (1) Calibration Protocol
  • (1) 550s Smart Digital Manifold Instruction Manual
  • (1) 115i Pipe-clamp Thermometer Instruction Manual
  • (4) AA Batteries
  • (1) Transport Case

Features

  • Testo 550s Smart Digital 2-Way Bluetooth Manifold

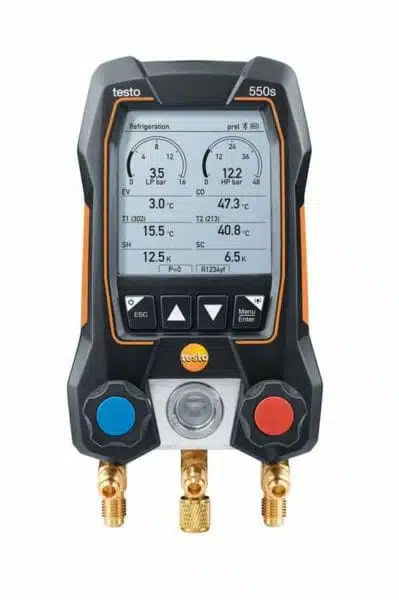

  • Large graphic display for easy evaluation of measurement results
  • Impressively compact and reliable thanks to the easy-to-handle, rugged housing with IP 54 protection class
  • Simple, wireless measurement of vacuum and temperature via automatic Bluetooth® connection between probes and manifold
  • For exceptionally fast measurements on refrigeration and air conditioning systems and heat pumps
  • Stored programs guide you through the measurement and make it possible to automatically determine key system parameters such as superheating, pressure drop test or evacuation

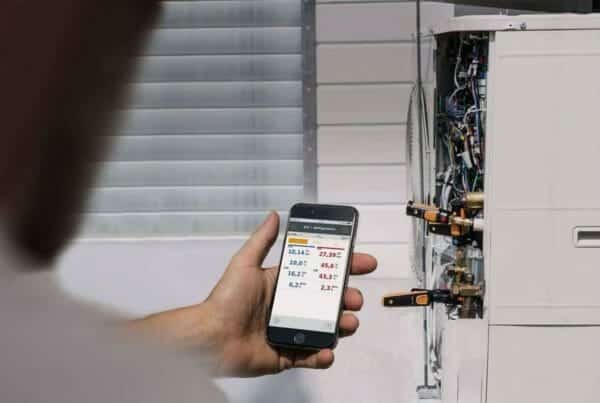

  • Create digital documentation straight away on site with the Testo Smart App
  • Always have the latest refrigerants thanks to automatic updates
  • Continuously high performance in all conditions. Proven Testo quality with excellent robustness

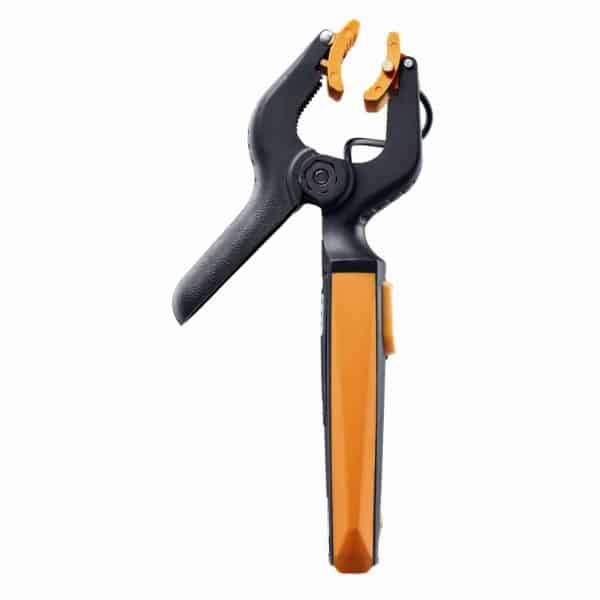

  • Testo 115i Pipe-clamp Thermometer
  • Convenient temperature measurement on refrigeration, air conditioning and heating systems – thanks to wireless connection to your smartphone or tablet
  • Fast identification of temperature changes by graphic progression display
  • Live data feed integration now available with the MeasureQuick App
  • Problem-free application at measuring points that are a long distance apart thanks to Bluetooth® range up to 350 ft

Specifications

550s Smart Digital Manifold General technical data
Weight : 29.14 oz. / 826 g
Dimensions : 8.27 x 4.76 x 2.36 in. / 210 x 121 x 60 mm (LxWxH)
Operating temperature : -4° to 122 °F / -20 to +50 °C
Protection class : IP54
System requirements : requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Product colour : Black
Auto-off : 10 min (when not connected via Bluetooth)
Battery type : 4 x AA batteries
Battery life : 250 h with no illumination, no Bluetooth®; 100 h with illumination and Bluetooth®
Data transfer : Bluetooth®
Radio range : 492.12 ft. / 150 m
Refrigerants in instrument : R407H; R23; R290; R1234yf; R442A; R134a; R123; R452B; R438A; R421A; R453a; R401B; R1233zd; R410A; R407A; R407C; R452A; R401A; R422C; R427A; R422B; R424A; R125; R414B; R404A; R408A; R448A; R422D; R12; R114; R421B; R449A; R409A; R420A; R444B; R32; R454A; R124; R402A; R450A; R407F; R416A; R13; R437A; R1234ze; R454B; R402B; R22; R434A; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (H₂O); R744 (CO₂)
Refrigerants update via App : R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; Ra11A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22
Storage temperature : -4° to 140 °F / -20 to +60 °C
Temperature
Measuring range : -58° to 302 °F / -50 to +150 °C
Accuracy : ±0.9 °F / ±0.5 °C
Resolution : 0.1 °F / 0.1 °C
Probe connection : 2 x plug-in (NTC)
Pressure measurement
Measuring range : -15 to 870 psi / -1 to 60 bar
Accuracy : ±0.5 % Fs
Resolution : 0.14 psi / 0.01 bar
Probe connection : 3 x 7/16" – UNF
Overload rel. (high pressure) : 943 psi / 65 bar
Testo 115i Pipe-clamp Thermometer General technical data
Weight : 4.49 oz. / 127.4 g
Dimensions : 7 x 4 x 1 in. / 183 x 90 x 30 mm
Operating temperature : -4° to 122 °F / -20 to +50 °C
Housing : Plastic
System requirements : requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Product colour : black/orange
Battery type : 3 x AAA
Battery life : 150 h
Storage temperature : -4° to 140 °F / -20 to +60 °C
Temperature - NTC
Measuring range : -40° to 302 °F / -40 to +150 °C
Accuracy : ±2.3 °F (-4° to 185 °F) / ±1.3 °C (-20 to +85 °C)
Resolution : 0.1 °F / 0.1 °C


Video


Q & A

Do the wireless temperature clamps transmit directly to the 550s manifold itself or just the app?

The readings from the wireless temperature clamps will display both on the Testo 550s digital manifold or the app.

What is the range on the wireless temperature clamps?

The range is 350ft.

What is the difference between the Testo 550 vs 550s?

The 550 has been discontinued and replaced by the improved Testo 550s.

What is the testo 550s warranty?

Testo offers a Limited Product Warranty on everything they make. It reads as follows,

"This warranty is applicable to Testo products purchased directly from Testo, Inc. or an authorized distributor of Testo, Inc. [like HVAC and Tools Direct]. This warranty does not apply to Testo products purchased from any other source. In addition, this warranty applies only to purchases made by Testo distributors/resellers and to retail purchasers from these distributors/resellers.

Some Testo products carry a specific warranty as outlined in the paperwork delivered with the products.

Testo warrants to its distributors/resellers and to direct purchasers from its distributors/resellers and from Testo that:

(a) for two years from the date of Buyer's purchase of a Testo product (or a shorter period than two years if a shorter time limit specified for the product on the Testo website),

(b) to the extent of the purchase price of the goods purchased hereunder,

(c) Testo will at its option repair or replace FOB Testo’s Sparta, NJ location or Ontario, Canada location (for sales in Canada) equipment or parts which fail in normal use because of defects in workmanship or materials.

Testo does not warrant that the operation of any product will be uninterrupted or error free.

This warranty does not apply to:

the use or ownership of Testo products by anyone who is not a distributor of Testo, Inc. and who was not a direct purchaser from a distributor/reseller of Testo or from Testo;

Testo products that have been modified, used for purposes for which they are not intended, mishandled, or subjected to abnormal wear and tear.

EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS OR IMPLIED, AND TESTO DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, SATISFACTORY QUALITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE."


Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Jeffrey A.
Smart kit good buy

this is a good starter kit for wireless measurements. You can add probes as you need them.
