Testo 550s Smart Vacuum Kit (0564 5505 01) Manifold with Hoses Wireless Temperature Clamps and Vacuum Probe

$70465

Available on backorder

FREE delivery over $99

Easy 30 day return (Domestic)

Easy International shipping

Need Help? Speak with our HVAC and tools experts. Call or text (786) 239-7444.

Description

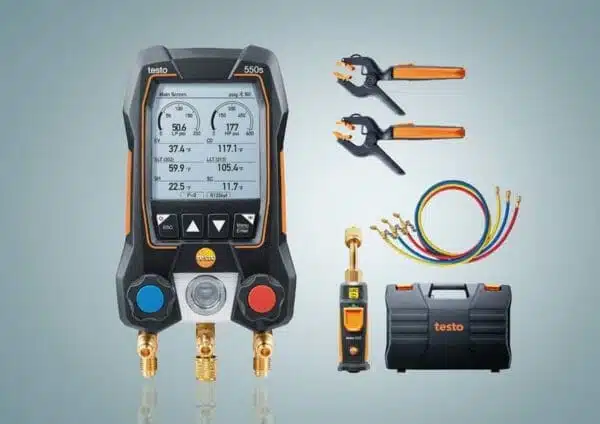

The Testo 550s Smart Vacuum Kit (0564 5505 01) with hoses is the most comprehensive kit because it comes with a set of 3 refrigerant hoses and the expertly crafted Testo 550s Smart Digital Manifold with 2-way valve block. The Refrigerant Gauges Manifold has a large display and connects wirelessly to the Testo 550s Smart App. In addition, you get 2 wireless temperature clamps, a wireless vacuum probe and a rugged transport case. The Bluetooth connectivity enables the refrigeration gauges to connect to these Testo Smart Probes, which are the ideal temperature & vacuum measuring instruments for servicing, troubleshooting, & installing systems. You get all your wireless measurements for refrigeration and air conditioning systems, as well as heat pump measurements, fast and efficiently.

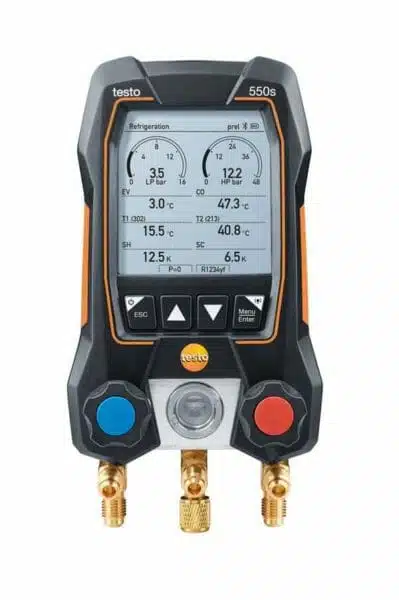

The Testo 550s refrigeration gauges manifold has a compact but robust housing with a guided measurement menu that is easily operated with one hand. Or connect to the Testo 550s App from your phone or tablet at the unit or up to 500 feet away to remotely start a measurement, stop measurements, reset measurements, configure measurements, and select refrigerant. You can also create measurements reports and send them by email directly from the Testo app.

Similar Kits:

TESTO 550S BASIC KIT (0564 5501 01) with wired clamps.

TESTO 550S SMART KIT (0564 5502 01) with wireless clamps.

TESTO 550S SMART KIT (0564 5504 01) with wireless clamps and vacuum probe.

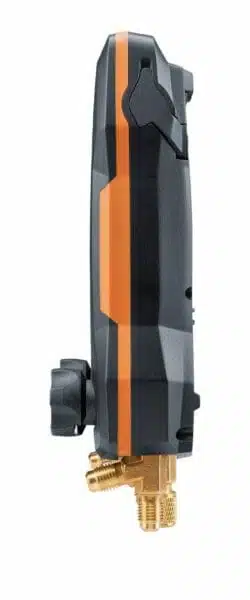

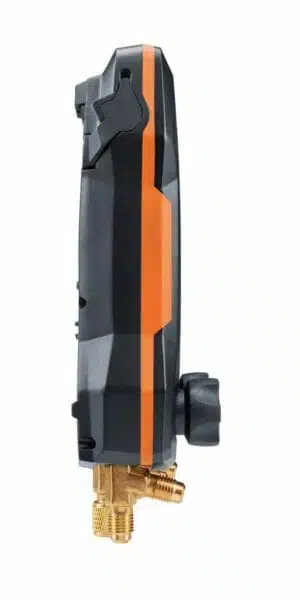

  • Testo 550s Smart Digital Refrigeration Gauges Manifold 2-Way Valve
  • Large graphic display for easy evaluation of measurement results
  • Impressively compact and reliable thanks to the easy-to-handle, rugged housing with IP 54 protection class
  • Simple, wireless measurement of vacuum and temperature via automatic Bluetooth® connection between probes and manifold
  • For exceptionally fast measurements on refrigeration and air conditioning systems and heat pumps
  • Stored programs guide you through the measurement and make it possible to automatically determine key system parameters such as superheating, pressure drop test or evacuation
  • Create digital documentation straight away on site with the Testo Smart App
  • Always have the latest refrigerants thanks to automatic updates
  • Continuously high performance in all conditions. Proven Testo quality with excellent robustness

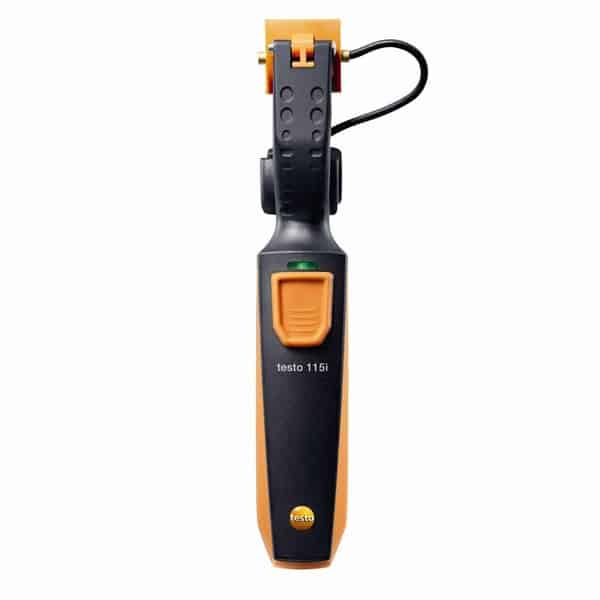

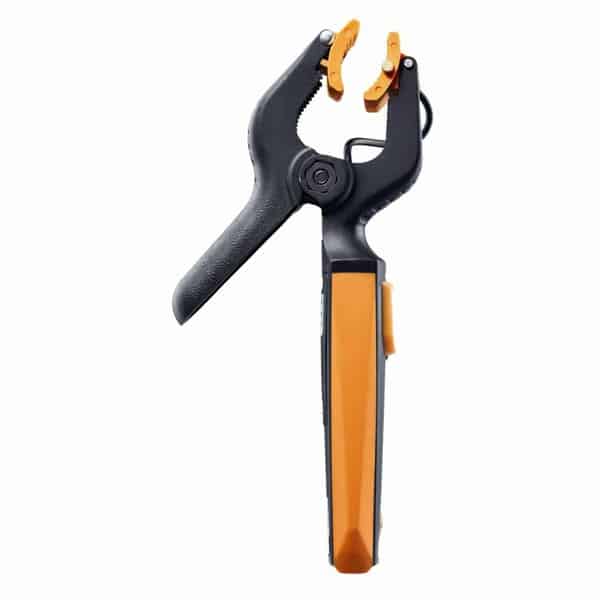

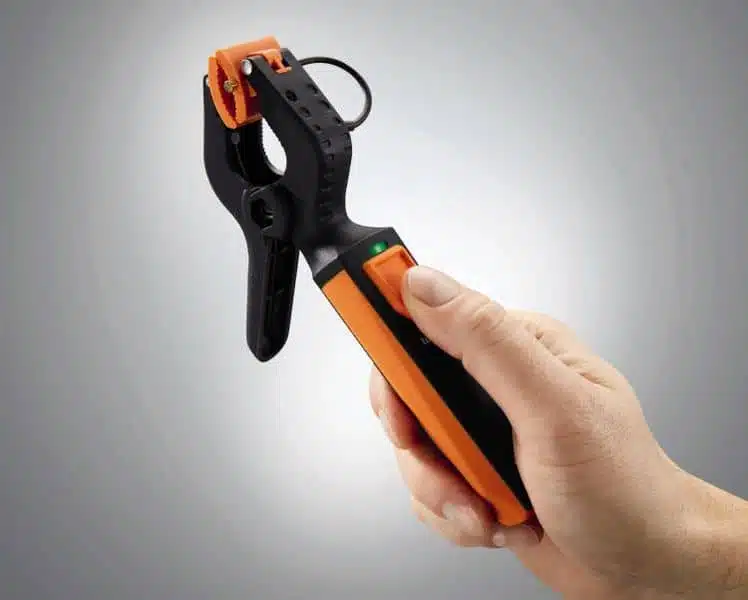

  • Testo 115i Pipe-clamp Thermometer
  • Convenient temperature measurement on refrigeration, air conditioning and heating systems – thanks to wireless connection to your smartphone or tablet
  • Fast identification of temperature changes by graphic progression display
  • Live data feed integration now available with the MeasureQuick App
  • Problem-free application at measuring points that are a long distance apart thanks to Bluetooth® range up to 350 ft

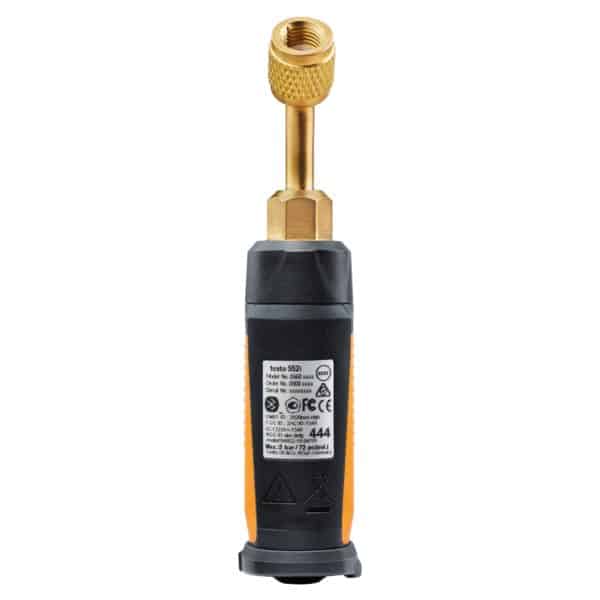

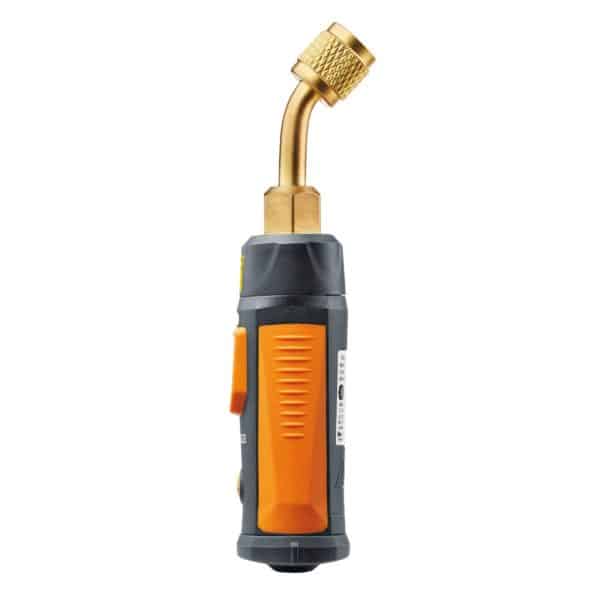

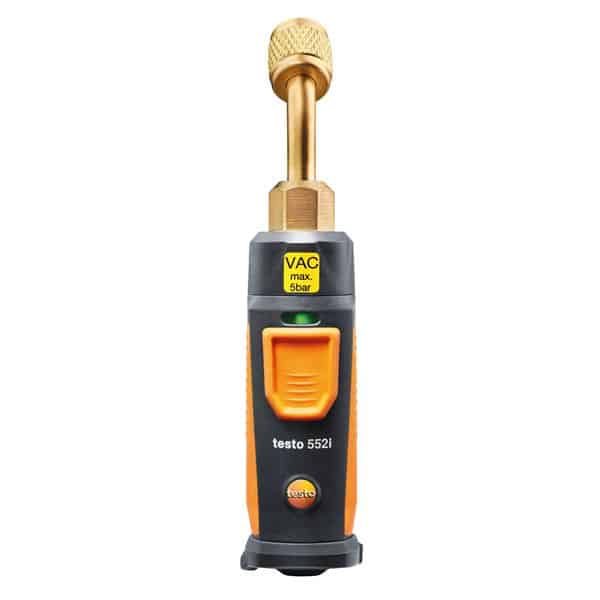

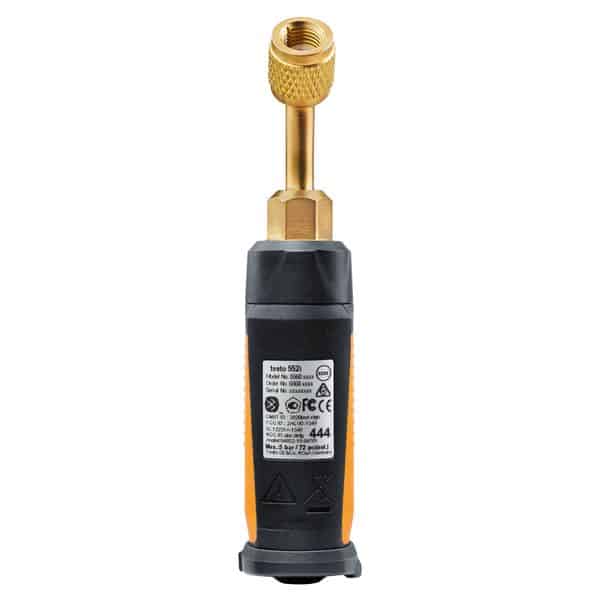

  • Testo 552i Wireless Vacuum Probe
  • Identify vacuum quickly and easily by means of the graphical display in the App or on the digital manifold screen
  • Exceptionally compact and reliable thanks to the rugged, easy-to-handle housing with IP 54 protection class
  • Easy installation at any service port thanks to the integrated 45° angle
    Testo 550s Digital Refrigerant Gauges Manifold General technical data
    Weight : 29.14 oz. / 826 g
    Dimensions : 8.27 x 4.76 x 2.36 in. / 210 x 121 x 60 mm (LxWxH)
    Operating temperature : -4° to 122 °F / -20 to +50 °C
    Protection class : IP54
    System requirements : requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
    Product colour : Black
    Auto-off : 10 min (when not connected via Bluetooth)
    Battery type : 4 x AA batteries
    Battery life : 250 h with no illumination, no Bluetooth®; 100 h with illumination and Bluetooth®
    Data transfer : Bluetooth®
    Radio range : 492.12 ft. / 150 m
    Refrigerants in instrument : R407H; R23; R290; R1234yf; R442A; R134a; R123; R452B; R438A; R421A; R453a; R401B; R1233zd; R410A; R407A; R407C; R452A; R401A; R422C; R427A; R422B; R424A; R125; R414B; R404A; R408A; R448A; R422D; R12; R114; R421B; R449A; R409A; R420A; R444B; R32; R454A; R124; R402A; R450A; R407F; R416A; R13; R437A; R1234ze; R454B; R402B; R22; R434A; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (H₂O); R744 (CO₂)
    Refrigerants update via App : R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; Ra11A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22
    Storage temperature : -4° to 140 °F / -20 to +60 °C
    Temperature
    Measuring range : -58° to 302 °F / -50 to +150 °C
    Accuracy : ±0.9 °F / ±0.5 °C
    Resolution : 0.1 °F / 0.1 °C
    Probe connection : 2 x plug-in (NTC)
    Pressure measurement
    Measuring range : -15 to 870 psi / -1 to 60 bar
    Accuracy : ±0.5 % Fs
    Resolution : 0.14 psi / 0.01 bar
    Probe connection : 3 x 7/16" – UNF
    Overload rel. (high pressure) : 943 psi / 65 bar
    Testo 115i Pipe-clamp Thermometer General technical data
    Weight : 4.49 oz. / 127.4 g
    Dimensions : 7 x 4 x 1 in. / 183 x 90 x 30 mm
    Operating temperature : -4° to 122 °F / -20 to +50 °C
    Housing : Plastic
    System requirements : requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
    Product colour : black/orange
    Battery type : 3 x AAA
    Battery life : 150 h
    Storage temperature : -4° to 140 °F / -20 to +60 °C
    Temperature - NTC
    Measuring range : -40° to 302 °F / -40 to +150 °C
    Accuracy : ±2.3 °F (-4° to 185 °F) / ±1.3 °C (-20 to +85 °C)
    Resolution : 0.1 °F / 0.1 °C
    Testo 552i Wireless Vacuum Probe General technical data
    Weight : 5 oz. / 142 g
    Dimensions : 6 x 1 x 1 in. (LxWxH) / 150 x 32 x 31 mm (LxWxH)
    Operating temperature : 14.0° to 122.0 °F / -10 to +50 °C
    Protection class : IP54
    System requirements : requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
    Product colour : black/orange
    Auto-off : 10 min (when not connected via Bluetooth)
    Battery type : 3 x AAA
    Battery life : 39 h
    Connection : 7/16“ UNF
    Interface : Bluetooth® 4.2
    Storage temperature : -4.0° to 122.0 °F / -20 to +50 °C
    Absolute Pressure
    Measuring range : 0 to 0.39 psi / / 0 to 26.66 mbar / 0 to 20000 micron
    Accuracy (±1 digit) : ±10 microns + 10% of m.v. (100 to 1,000 microns)
    Resolution : 1 micron (0 to 1000 micron) / 10 micron (1000 to 2000 micron) / 100 micron (2000 to 5000 micron) /
    Overload : absolute: 87.0 psi / 87 psi | absolute: 6.0 bar / 87 psi ; (relative: 72.5 psi / 72 psi) | (relative: 5.0 bar / 72 psi)
    How do you use the Testo 550s?

    The menu selection and keypad can be easily operated with one hand. All measurement values are in view in the clearly arranged display. In the selection menu, you carry out the settings and switch between the measurement modes. For evacuation and tightness testing, the measurement is shown as a graphic progression. Via Bluetooth 5.0, the manifold automatically recognizes and connects to all available smart probes relevant for the measurements.

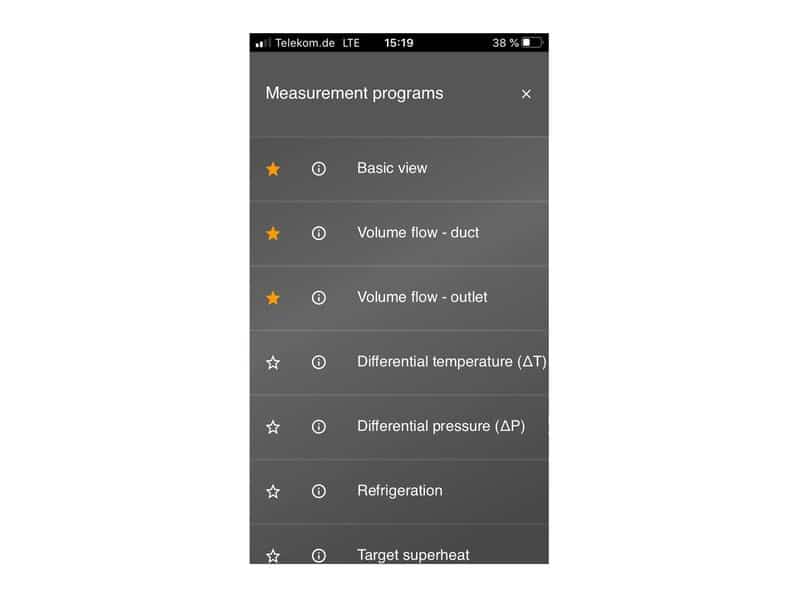

    How do you use the Testo 550s app?

    The app is available as a free download and features intuitive measurement menus and smart functions such as creating and sending digital measurement reports. After downloading the Testo Smart App on your mobile device, monitor and document the measurements values remotely via the app from up to 500' or 150 meters distance. Use the testo Smart App for all your refrigeration, air conditioning, heating and ventilation applications with the Bluetooth measuring instruments from Testo.

    What is the warranty on the Testo 550s?

    <p>Testo offers a <a href="https://www.testo.com/en-US/company/warranty" target=_blank>Limited Product Warranty</a> on everything they make. It reads as follows,</p><p>"This warranty is applicable to Testo products purchased directly from Testo, Inc. or an authorized distributor of Testo, Inc. [like HVAC and Tools Direct]. This warranty does not apply to Testo products purchased from any other source. In addition, this warranty applies only to purchases made by Testo distributors/resellers and to retail purchasers from these distributors/resellers.</p><p>Some Testo products carry a specific warranty as outlined in the paperwork delivered with the products.</p><p>Testo warrants to its distributors/resellers and to direct purchasers from its distributors/resellers and from Testo that:</p><p>(a) for two years from the date of Buyer's purchase of a Testo product (or a shorter period than two years if a shorter time limit specified for the product on the Testo website),</p><p>(b) to the extent of the purchase price of the goods purchased hereunder,</p><p>(c) Testo will at its option repair or replace FOB Testo’s Sparta, NJ location or Ontario, Canada location (for sales in Canada) equipment or parts which fail in normal use because of defects in workmanship or materials.</p><p>Testo does not warrant that the operation of any product will be uninterrupted or error free.</p><p>This warranty does not apply to:</p><p>the use or ownership of Testo products by anyone who is not a distributor of Testo, Inc. and who was not a direct purchaser from a distributor/reseller of Testo or from Testo;</p><p>Testo products that have been modified, used for purposes for which they are not intended, mishandled, or subjected to abnormal wear and tear.</p><p>EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS OR IMPLIED, AND TESTO DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, SATISFACTORY QUALITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE."</p>

    How can I process a warranty?

    <p>All Testo product warranties, repairs, and servicing are ultimately sent to:</p><p>Testo North America, Service Department<br> 40 White Lake Road<br> Sparta, NJ 07871<br> Phone: 800-227-0729<br> Fax: 862-354-5019<br> Email: services@testo.com</p><p>Fortunately, RGAs or RMAs (Returned Goods Authorizations / Returned Material Authorizations) are NOT required. Instead, Testo instructs customers requesting servicing to complete their <a href="https://static-int.testo.com/media/b7/e2/382b9532f598/repair-calibration-form.pdf" target=_blank>Instrument Repair and Calibration</a> form entirely, while including proof of purchase for warranty claims.</p><p>Customers submitting instrument(s) for calibration or service [not warranty] will receive a quote after receipt of instrument and processing of associated service/calibration repair form. Work will be completed after customer approval and returned promptly.</p><p><i>Please note: Instruments left at Testo for more than 30 days without a quote approval or without proper paperwork will be returned in their original condition to the owner/distributor and incur the minimum labor charge and/or reexamination fee and all subsequent shipping charges. In the event the equipment is left at Testo for over 90 days, Testo reserves the right to dispose of the equipment. Testo is not responsible for typos or misinformation. Testo states it is not responsible for personal items sent with the unit (hoses, tools, etc.).</i></p><p>For more information you may visit the Testo Service Department FAQs webpage <a href="https://www.testo.com/en-US/services/repairs" target=_blank>here</a>.</p>

    • (1) Testo 550s Smart Digital Refrigeration Gauges Manifold 2-Way (0564 5500)
    • (2) Testo 115i Pipe-clamp Thermometer operated via smartphone (0560 2115 03)
    • (1) Testo 552i Wireless Vacuum Probe
    • (1) Three Hose (RYB) Set
    • (1) Calibration Protocol
    • (4) AA Batteries
    • (1) Transport Case
    • (1) Instruction Manual
