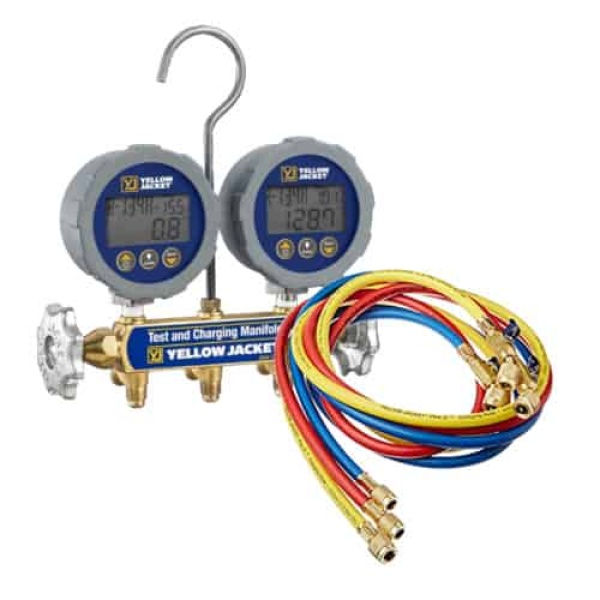

Yellow Jacket 46062 Series 41 Digital Manifold with Compact Valve Hoses


FREE Delivery Over $100
Easy 30 Day Return

$347.84

4 in stock

SKU: yj_46062 Categories: , Brand:

Need Help? Speak with our HVAC and tools experts. Call or text (786) 239-7444.

Description

The Yellow Jacket, 46062 Series 41 Digital Manifold with Compact Valve Hoses, combines the advantages of digital technology with the proven Series 41 2-valve brass manifold. The 3-1/8” backlit LCD gauges provide easy-to-read accurate measurements for system pressures. Each interchangeable meter can handle maximum pressures of 800 psi, so there are no worries about over-pressurizing. Pre-programmed with 21 most common refrigerants, the Series 41 Digital Manifold will provide precise, swift, and accurate pressure measurements for all your system applications. The forged body of the manifold is constructed of solid brass for durability. Full porting maximizes capacity, and the metal valve handles are full size for easy operation. For added security, the hose anchors are forged into the back of the body at 45°.

The Yellow Jacket, 46062 Series 41 Digital Manifold with Compact Valve Hoses, comes with features. The digital manifold has a three-pack of PLUS II hoses with compact ball valve ends. Also, it comes with a forged brass body for durability. Featured also are sliding double “O” ring pistons to reduce wear. Also, it comes with long-life nylon seats. Furthermore, it has complete porting, which maximizes capacity and flow. Moreover, the hose assemblies UL recognized for 4000 psi (275 bar) burst and 800 psi (55 bar) working pressure.


Included

  • (1) Yellow Jacket 46062 Series 41 Digital Manifold with Compact Valve Hoses

Features

  • Yellow Jacket 46062 Series 41 Digital Manifold with Compact Valve Hoses
  • Digital Manifold with 3 Pack PLUS II hoses with compact ball valve ends
  • Forged brass body for durability
  • Sliding double "O" ring pistons reduce wear
  • Long life nylon seats
  • Full porting maximizes capacity and flow
  • Hose assemblies UL recognized for 4000 psi (275 bar) burst and 800 psi (55 bar) working pressure. File# SA9737
  • Assembled in the USA
  • 2 Valve manifold
  • 3-1/8 backlit LCD gauges
  • Pre-programmed with 21 of the most common refrigerants
  • Each interchangeable gauge is capable of handling maximum pressure of 800 psi
  • Hose anchors are forged into the back of body at 45° for extra security

Specifications

Yellow Jacket 46062 Series 41 Digital Manifold with Compact Valve Hoses
Pressure Range : -14.7 ~ 800 psi (-1 ~ 54.4 bar)
Unit (Pressure) : psi - bar - MPa - kg/cm2 - kPa
Working Temperature : 14ºF ~ 140ºF (-10ºC ~ 60ºC)
Pressure Accuracy : ± 0.5% F.S @ 71.6 ~ 82.4ºF (@22~28ºC)
Unit (Temperature) : ºF/ºC
Working Humidity : 35 ~ 85%
Sampling Rate : 1.2 sec max.
Auto-off : 10 Minutes
Power Supply : Battery CR123A (3.0V, 1400mAh)
Battery Life : 2 years for continuous operation without backlight
Refrigerants in Database : R-22, R-23, R-32, R-124, R-134A, R-290, R-404A, R-407C, R-407F, R-408A, R-410A R-417A, R-427A, R-444B, R-448A, R-449A, R-452A, R-507, R-600, R-1234YF, R1270
