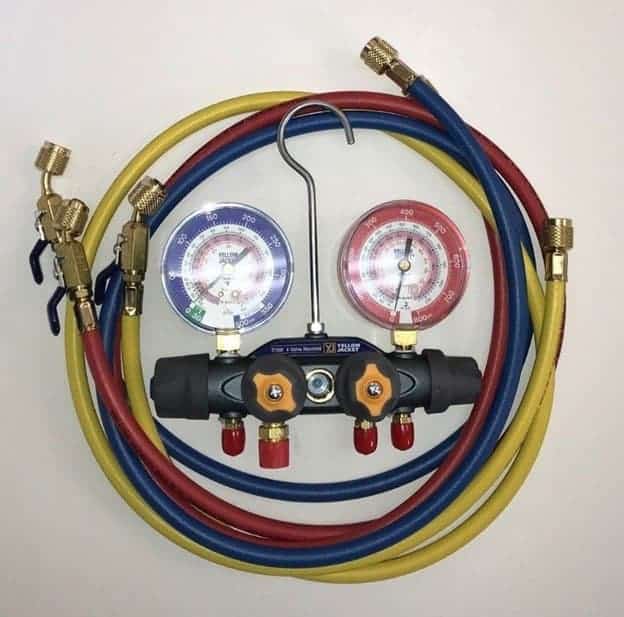

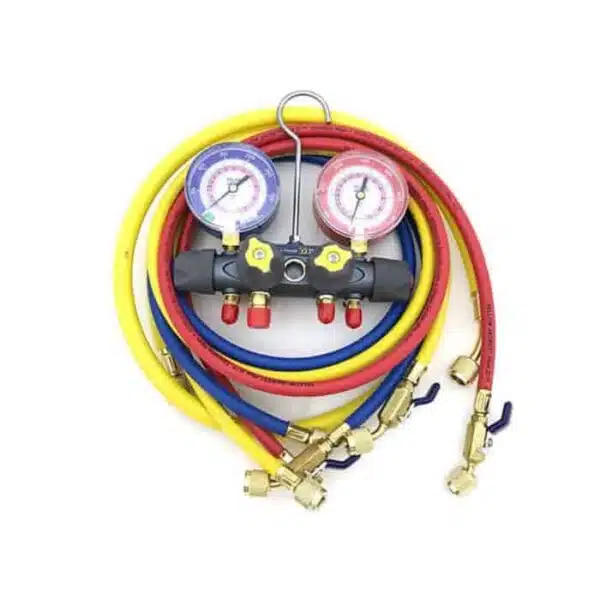

Yellow Jacket 49968 Titan 4 Valve Test and Charging Manifold

$33413

Available on backorder

FREE delivery over $99

Easy 30 day return (Domestic)

Easy International shipping

Need Help? Speak with our HVAC and tools experts. Call or text (786) 239-7444.

Description

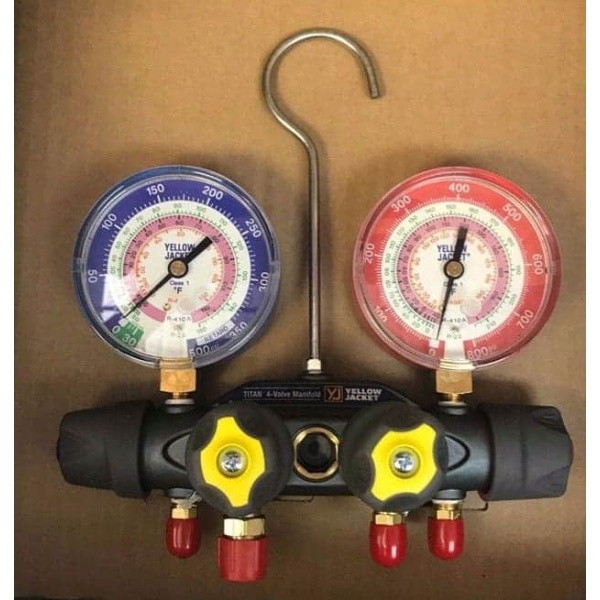

The Yellow Jacket 49968 TITAN 4-Valve Test and Charging Manifold with Hoses and Ball Valves is the first forged aluminum manifold in the industry.  The unique aluminum alloy construction of the manifold body makes it lightweight for handling ease with the durability and reliability required for repeated, rugged use.

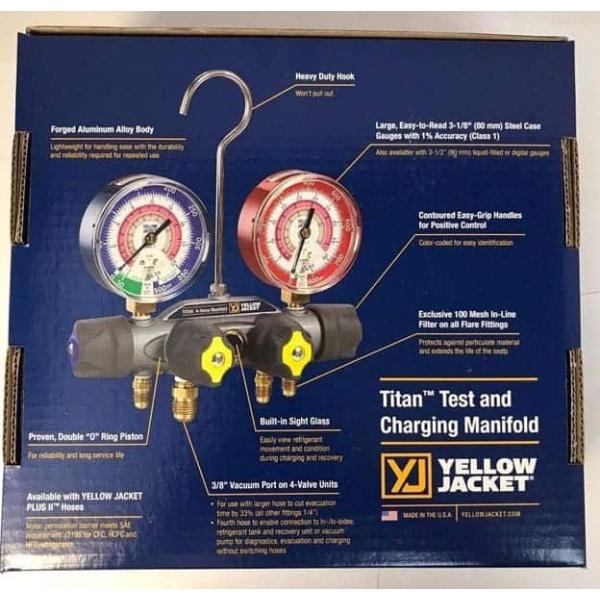

The Yellow Jacket 49968 Titan 4-Valve Test and Charging Manifold with Hoses and Ball Valves comes packed with great features. To begin with, it comes with a fourth hose to enable connection to hi-lo-sides, refrigerant tank, and recovery unit or vacuum pump for diagnostics, evacuation and charging without switching hoses. Also, it comes with a 3/8″ vacuum port with a larger hose to cut evacuation time by up to 33% (all other fittings are 1/4″). Also, it has a large, easy-to-read 3-1/8″ (90 mm) steel case in red and blue, with 1% accuracy (class 1) gauges. Adding to that also, it features front access for easy field recalibration. It features a double “O” ring piston for reliability and long service life. Moreover, it has an exclusive 100 mesh filter in-line on all flare fittings, which helps keep out particulate material and extends the life of the seats. Also, it features contoured easy-grip handles for positive control and is color-coded for ready identification. Moreover, it has a sigh glass to quickly view refrigerant movement and condition during charging and recovery. Lastly, it has optional protective gauge boots available. And a heavy-duty hook that won’t pull out.

  • Yellow Jacket 49968 Titan 4 Valve Test and Charging Manifold
  • Large, easy to read 3-1/8” (80 mm) steel case gauges
  • 1% accuracy (Class 1) gauges
  • Proven, double “O” ring piston
  • Exclusive 100 mesh filter in-line on all flare fittings
  • Contoured easy-grip handles for positive control
  • Built in sight glass
  • Heavy duty hook
  • High-pressure hose set
  • Fourth hose to enable connection to hi/lo sides, refrigerant tank, and recovery unit or vacuum pump
  • 3/8” vacuum port for use with larger hose to cut evacuation time by up to 33%
    Yellow Jacket 49968 Titan 4 Valve Test and Charging Manifold
    Material : Forged Aluminum Alloy
    Refrigerant Compatibility : R-22, R-404a, R-410a
    Number of Valves : 4
    Number of Hoses : 4
    Hose Length : 60 in
    Vacuum Port Size (1) : 3/8 in
    Hose holder fittings (3) : 1/4 in

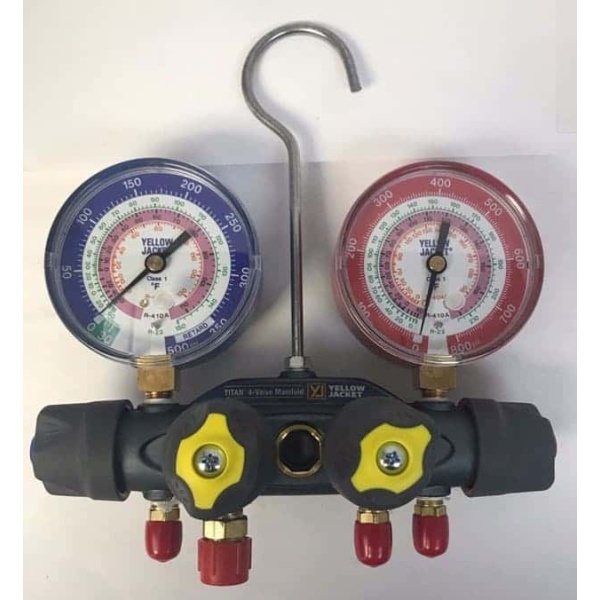

    Gauges : Steel Case Red and Blue
    Gauges High Side Red : 0 to 800 psig
    Gauges Low Side Blue : 30 in Hg to 350 psi
    Gauge Accuracy : +/-1.00%
    Dimensions : 12 x 5 x 13 in
    Weight : 6 lbs
    Made in : USA
    Does this set Yellow Jacket 49968 have 4- 60" hoses and 4 compact ball valves?

    It has four 60" hoses and 3 compact ball valves. The 3/8 charging hose does not have a ball valve.

    What is the benefit of the 4-valve yellow jacket 49968 charging manifold vs a 2 valve?

    The advantage of 4 valve vs 2 valve is you can vacuum a system down on the vac line and have your tank hooked up to the other. You don’t have to unhook one to attach the other. This way there is less chance of introducing air into the closed loop.

    Does this yellow jacket 49968 charging manifold come with a carrying case?

    No this set doesn’t come with a carry case but you will love it. It’s an awesome gauge set.

    What is the difference between 49967 and 49968 charging manifold?

    The 49967 has standard fittings on the hoses, while the 49968 has compact ball fittings on the hoses.

    • (1) Yellow Jacket 49968 Charging Manifold

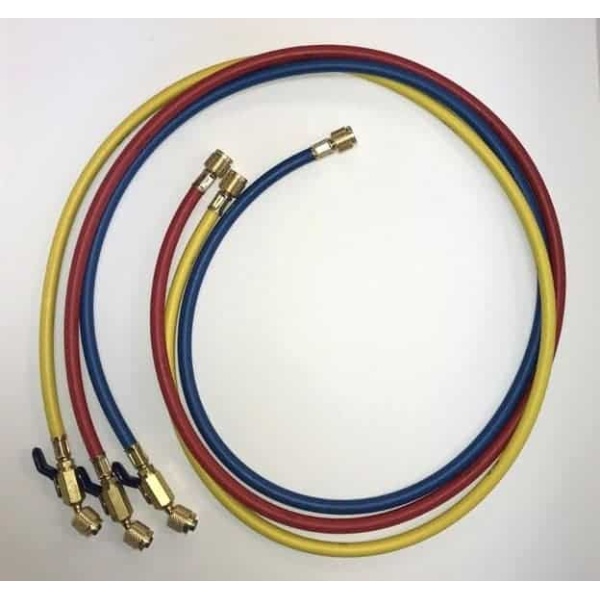

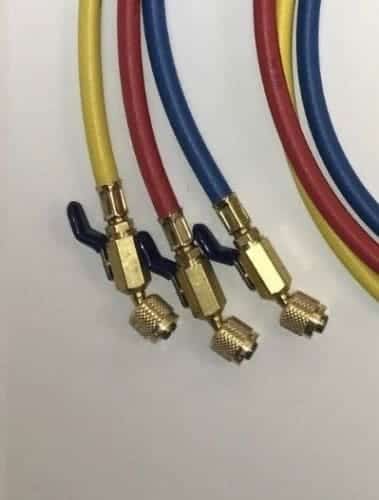

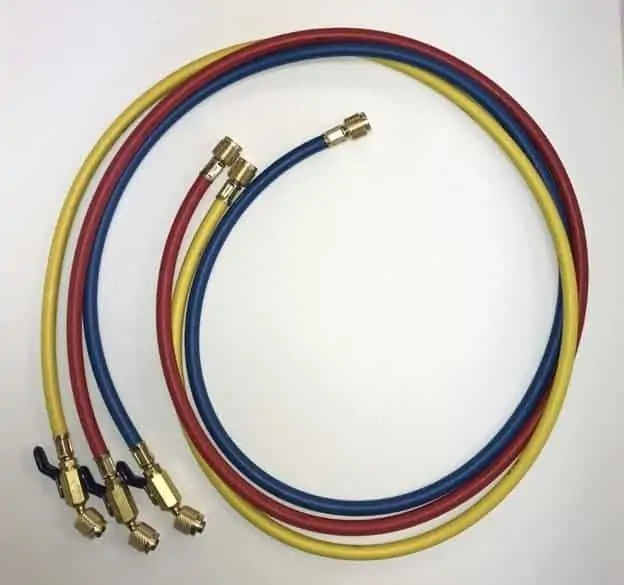

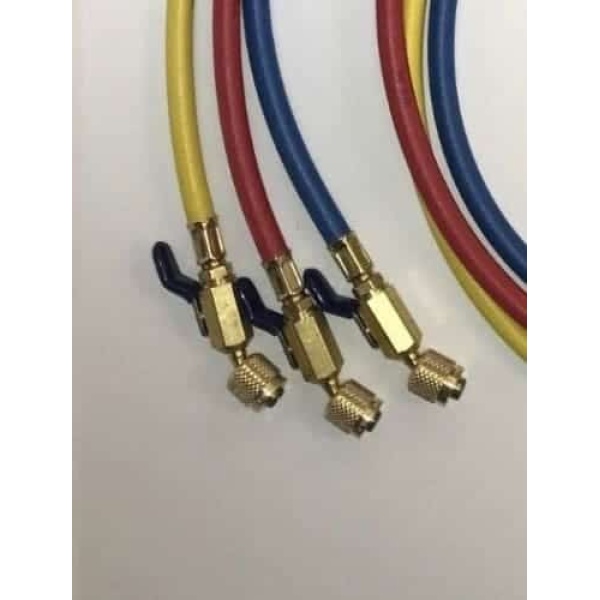

    • (1) Set of three 60”, RYB PLUS II™ Hoses with  3/8” x 45° fittings and compact ball valves

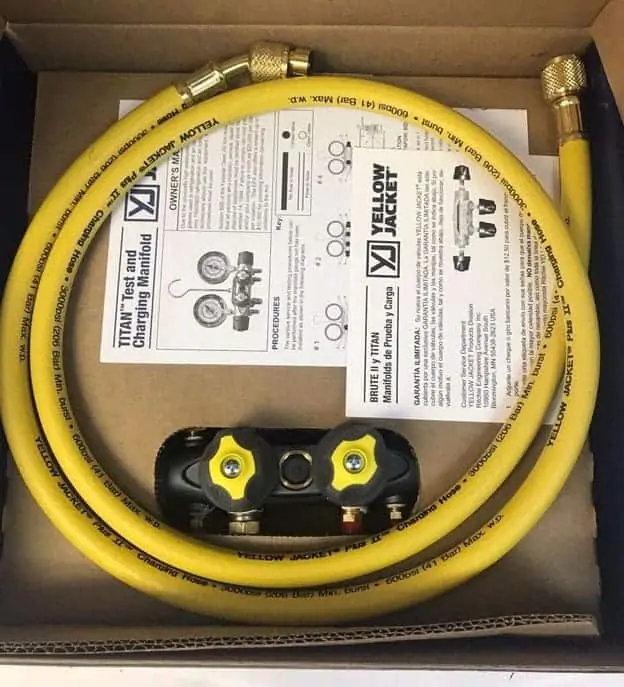

    • (1) Yellow charging hose

    Customer Reviews

    Based on 1 review
    100%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    J
    J.V.
    Best set of gauges on the market

    Their gauges ARE the quality that should be the industry standard.
