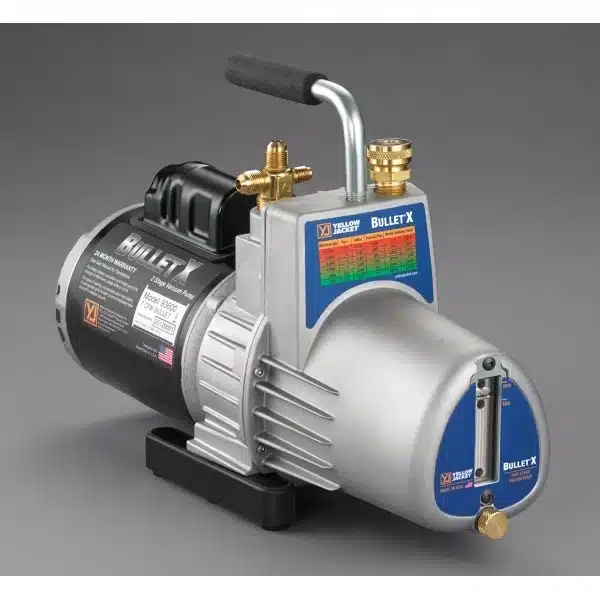

Yellow Jacket 93600 Bullet X 7 CFM Vacuum Pump


FREE Delivery Over $100
Easy 30 Day Return

$484.47

21 in stock

Yellow Jacket 93887 MaxFlow Evacuation Hose Kit

Yellow Jacket 67066 YJACK VAC Wireless Vacuum Gauge

SKU: yj_93600 Categories: , Brand:

Need Help? Speak with our HVAC and tools experts. Call or text (786) 239-7444.

Description

The Yellow Jacket 93600 Bullet X Vacuum Pump 7 CFM is a highly efficient, two-stage rotary vane, oil-sealed 7 CFM pump rated to better than 25 microns. This Bullet X replaces the now obsolete Bullet model. The upgraded design features a wide mouth oil reservoir port for easier filling, and it has various enhancements to improve ergonomics and performance.

Pulling down to less than 25 microns, the Yellow Jacket Bullet X Vacuum Pump 7 CFM 115V/60 Hz single phase protects the system from contaminants and non-condensable gases, damaging components and reducing efficiency cause system failure. The seven cfm can handle most residential and commercial applications. The Bullet X makes evacuating a system easier for years to come.

The Yellow Jacket 93600 Bullet X 7 CFM Vacuum Pump comprises features. To begin with, it has a 7 CFM 115V/60 Hz single phase. Also, it has a wide mouth oil reservoir port for easier, cleaner filling. As well as doubling as a pump exhaust. It’s also threaded to attach a garden hose for exhausting to a remote location. Furthermore, it has a large oil sight glass to monitor oil levels quickly. Also, significant brass oil drain for easy access to fast oil changes. Moreover, it has an internal intake check valve that prevents oil backup into the system during a power failure. Also, an intake filter screen keeps damaging particles from entering the pump. It also features heavy-duty rotors and bearings. As well as a heavy-duty steel handle for well-balanced carrying. Featured also are tethered port caps that stay with the pump. A stable base with wide stance metal with a rubber overlay. Lastly, a 24-month limited over-the-counter warranty.


Included

  • (1) Yellow Jacket 93600 Bullet X vacuum pump 7 CFM
  • (1) Start-up Bottle of Pump Oil
  • (1) Owner's Manual

Features

  • Yellow Jacket 93600 Bullet X 7 CFM Vacuum Pump
  • Internal intake check valve to help prevent oil backup into the system during a power failure
  • Intake filter screen keeps damaging particles from entering into the pump
  • Heavy duty rotors and bearings
  • Wide mouth oil reservoir port for easier, cleaner filling
  • Oil reservoir port doubles as pump exhaust - threaded to attach garden hose for exhausting to remote location
  • Large brass oil drain for easy access to fast oil changes
  • Downward angled oil sump to remove contaminants usually trapped in other sump designs
  • Oil suck-back valve improvement
  • Large oil sight glass for easy monitoring of oil level
  • Heavy duty steel handle for well-balanced carrying
  • Stable base; wide-stance metal with rubber overlay
  • Integrated cooling fins to cool pump and increase performance
  • Tethered port caps stay with the pump
  • Two-year warranty

Specifications

Yellow Jacket 93600 Bullet X 7 CFM Vacuum Pump
Free air displacement : 7.0 cfm
Voltage (single phase) : 115V/60 Hz
Number of stages : 2-stage rotary vane
Field blankoff : 25 microns
Intake : 1/4" x 3/8" x 3/8"
Motor : 1/2” hp – 1725 rpm
Thermal overload protection : Yes
Power cord : 6' - motor mounted switch - U.S. plug
Oil capacity : 28 oz. (0.828 L)
Dimensions : 17.5" L x 6" W x 12" H (44.5 cm x 15.2 cm x 30.5 cm)
Net weight : 31.7 lbs. (14.4 kg)
Made in the : USA


Video


Q & A

How often does the oil need to be changed on the Yellow Jacket bullet vacuum pump?

After every usage, like any vacuum pump. Oil can become contaminated.

Is this vacuum pump a two stage or single stage?

Two stage.

What is the difference between the Yellow Jacket Bullet X Vacuum Pump vs. Yellow Jacket Bullet Vacuum Pump?

The Bullet X replaced the original Bullet model. The previous Bullet model (without the X) is now obsolete. The Bullet X has upgraded design features and enhancements to improve ergonomics and performance.


Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Arthur L
Very Fast

Built very tough and it is fast.
