Yellow Jacket 40870 P51-870 Titan 4-Valve Digital Manifold
$82119
Brand: Yellow Jacket GTIN#: 686800408705 MPN#: 40870
Description
The Yellow Jacket 40870 P51-870 TITAN Digital Manifold with hoses quickly provides ultimate system measurements. This 4-valve manifold offers fast and accurate measurements for refrigeration and a/c systems. Sizes are displayed on a backlit digital display and can be transmitted via Bluetoothยฎ to a Smartphone for further analysis. Local production of system pressures and temperatures, superheat and subcool provide instant analysis. When the Yellow Jacket digital gauges are connected to your Smartphone, target superheat and subcool are easily attained, along with all the other capabilities of the YJACK VIEWโข or ManToothยฎ app.
The flagship Yellow Jacket 40870 P51-870 Digital Manifold features a 4.3โ full-color touchscreen display with a digital and graphical representation of pressure and temperature measurements. It also features onboard data logging, a standard vacuum sensor, and measurements (vacuum sensor included). Four hoses are included two temperature clamps and a backpack carrying case for safe storage. This particular version consists of a three-pack of Plus II 60″ standard fitting 1/4″ hoses with Double Barrier Protection for CFC, HCFC, and HFC refrigerants. There is also one 60″ yellow vacuum hose (3/8″ str x 3/8″ 45ยฐ Quick Coupler).
The Yellow Jacket P51-870 titan digital charging manifold is an advanced, compact instrument for refrigeration and AC systems. The P51-870 titan digital manifold measures systems’ temperature, pressure, superheat, and subcooling and shows accurate results immediately. The digital 4.3″ color display is easily read even in the dark because of the display’s backlight feature. Data and results can easily be saved or backed up for additional analysis or data storage by saving the results using BlueTooth to your Smartphone. Additionally, the instrument has on-board data logging, which means the data will be stored on your smartphone and on the P51-870. The advantage of the P51-870 digital manifold is a library of 126 preloaded refrigerants, including new blends not even on the current Refprop database, as well as its ability to measure in both US and International measurement standards.
What's Included

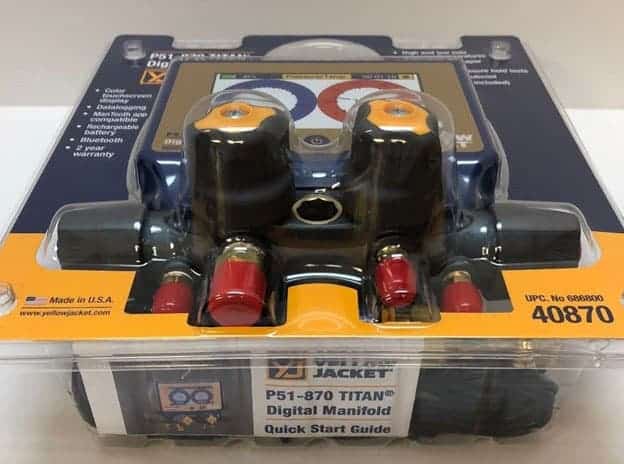

- (1) Yellow Jacket P51-870 TITAN Digital Manifold 40870
- (1) 3 pack 60โณ PLUS IIโข 1/4โณ Charging Hoses, HAV standard fitting, RYB
- (1) 60" Yellow Vacuum Hose
- (1) Vacuum Sensor
- (2) Temperature Clamp Probes
- (1) USB Charging Cable

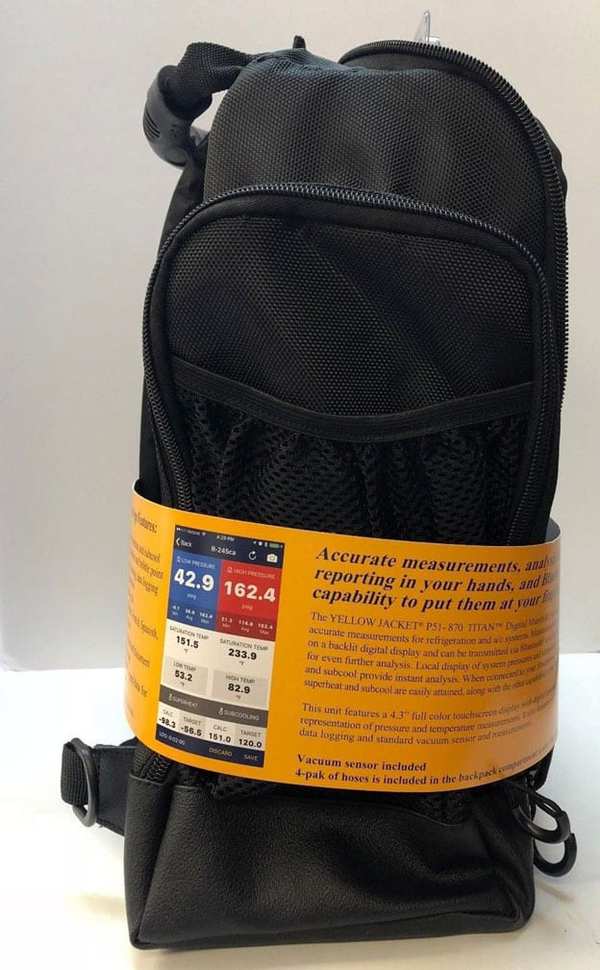

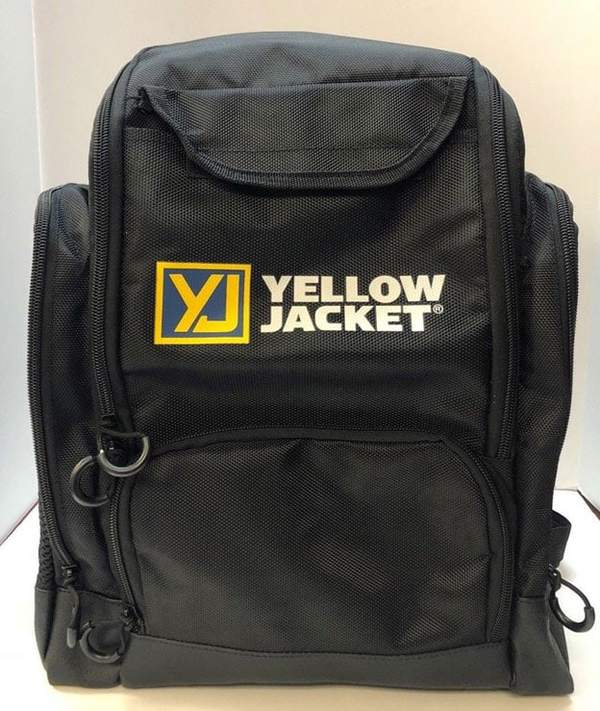

- (1) Backpack Carrying Case
Features
- Yellow Jacket P51-870 Titan Digital Charging Manifold with Bluetooth
- Displays vapor and liquid saturation temperatures
- System superheat and subcooling calculations
- On board data logging; export to your computer through USB or to your phone via the YJACK VIEWยฎ app for 40870, 40875 and 40877 (40860 uses the ManToothยฎ app)
- Pressure hold mode displays rate of change for both vacuum and positive pressure measurements
- 4-way TITANยฎ valve block
- 126 refrigerant profiles stored in the instrument including new blends not currently on the REFPROP database.
- Backlit display with auto-dimming
- Auto shut-off
- Bluetoothยฎ capability
- Includes two temperature clamps (40877 kit has YJACKยฎ Wireless Temperature Clamps)
- Optional vacuum sensor available (included with P51-870 TITANยฎ)
- Vacuum measurements, targets and leak testing
- High and low alarms
- Re-chargeable battery with battery life indicator
- Continuous use no backlight: 80 hours
- Continuous use full backlight: 5 hours (40860); 4 hours (40870)
- US and international units (bar, psia, psig, kPa, MPa, kg/cm2)
- Maximum working pressure 700 psia (48.3 bar)
- USB charging port
- IP52 certified
- Robust housing
- Two year warranty
- Additional features and benefits of the P51-870 TITANยฎ:
- 4.3โ Full color touch screen display
- Digital and graphical representation of pressure and temperature measurements
- Vacuum sensor included
- Set of 4 manifold hoses included: (3) 1/4โณ RYB and (1) 3/8โณ yellow vacuum hose
- 40875 and 40877 include: (2) 5/16โณ hoses RB
- Backpack carrying case included
Specifications
| Yellow Jacket P51-870 Titan Digital Charging Manifold with Bluetooth | |
| Working Pressure : | 0 โ 700 psia (48.3 bar) |
| Pressure Sensing Resolution : | <ul><li>0.1 psi, 0.1 bar, 1 kPa</li><li>0.001 MPa, 0.01 kg/cm^2</li></ul> |
| Pressure Sensing Accuracy : | <ul><li>0.5% of full scale at 77ยฐF (25ยฐC)</li><li>1% of full scale 55 to 130ยฐF (13 to 54ยฐC)</li><li>2% of full scale -40ยฐF to 248ยฐF (-40 to 120ยฐC)</li></ul> |
| Temperature Sensing Range : | <ul><li>Sensing element: -40 to 266ยฐF (-40 to 130ยฐC)</li><li>Max Cord temp: 176ยฐF (80ยฐC)</li><li>Max Clamp Temp: 203ยฐF (95ยฐC)</li></ul> |
| Temperature Sensing Resolution : | 0.1ยฐF or ยฐC |
| Temperature Sensing Accuracy : | ยฑ0.36ยฐF (ยฑ0.2ยฐC) |
| Vacuum Sensing Range : | 5 to 100000 microns |
| Vacuum Sensing Resolution : | 1 micron |
| Physical Specifications | |
| Maximum Pressure : | 700 psia (48.3 bar) |
| Operating Temperature : | 140 to -4ยฐF (60 to -20ยฐC) |
| Storage Temperature : | 140 to -4ยฐF (60 to -20ยฐC) |
| Battery Life : | 4 hrs continuous Backlight 80 hrs no Backlight |
| Size Approx. : | 7.5" x 8.5" x 4.25" |
| Weight : | 2.63 lbs |
Questions
Does this come with the wireless temperature clamps, or wired?
The temperature clamps are wired.
How long are the hoses?
The hoses are 60 inches.
