Fieldpiece SC260 Compact Clamp Meter True RMS


FREE Delivery Over $100
Easy 30 Day Return

$136.00

15 in stock

Need Help? Speak with our HVAC and tools experts. Call or text (786) 239-7444.

Description

The Fieldpiece SC260 Compact Clamp Meter is an excellent meter for testing HVACR electrical measurements. Test variable frequency drive and temperature (Fahrenheit and Celsius) more accurately with True RMS and easily see your measurements in low lighting with the bright blue backlight. Hang the Fieldpiece meter to any metallic surface with its newly designed swivel magnet to keep your hands free to do more.

The Fieldpiece SC260 clamp meter for HVAC helps you save time with the new Auto Select mode. Set the dial and connect your leads; the clamp meter will automatically select the appropriate measurement depending on what it detects. Also, all SC200 compact clamp meters are built to withstand the rigors of HVACR service with high-impact plastic and a display you can read in very hot or very cold environments. Moreover, move from a cold freezer to a hot rooftop and get accurate temperature measurements that lesser thermometers cannot measure correctly.

Fieldpiece Digital Clamp Meter Compact TRMS is a compact digital clamp meter that is versatile, durable, and features all the measurement options that HVACR technicians need to get the job done. Fieldpiece Compact Clam Meter features True RMS AC/DC voltage measurement, AC amp measurement, non-contact voltage measurement, and much more.

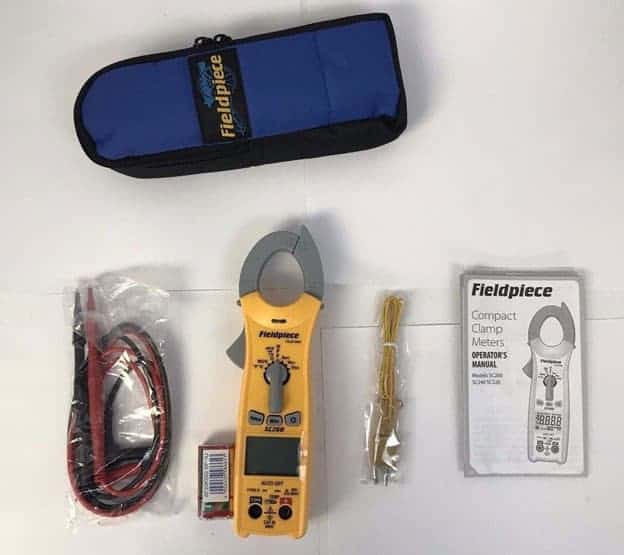

Included

  • (1) Fieldpiece SC260 Clamp Meter
  • (1) ADLS2 Deluxe Silicone Lead Set with Gold Plated Tips and Removable Sheath
  • (1) ATB1 Wrap Tab Type K Thermocouple
  • (1) Velcro Strap
  • (1) 9V Battery
  • (1) ANC4 Padded Case

Features

  • Fieldpiece SC260 Digital Clamp Meter Compact TRMS
  • Volts AC/DC
  • True RMS
  • 400 Amps AC
  • Temperature F°/C° (SC240/SC260)
  • Capacitance (MFD)
  • Non-contact voltage
  • 40 Mega Ohm with 0.01 resolution
  • Continuity
  • Diode Test
  • Max/Min/Hold
  • Bright LCD backlight
  • Low battery indicator
  • Sturdy magnet
  • Hi-voltage Warning
  • 1 Year limited warranty

Specifications

Fieldpiece SC260 Digital Clamp Meter Compact TRMS
Display : 4000 count
Backlight : 5 minute duration with auto-off. Blue color. SC260 only
Overrange : (OL) or (-OL) is displayed
Measurement rate : 3 times per second, nominal
Zero : Automatic
Operating environment : 32°F to 122°F (0°C to 50°C) at <70% relative humidity
Storage temperature : -4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with battery removed)
Accuracy : Stated accuracy @ 73°F±9°F (23°C±5°C), <75%RH
Temperature coefficient : 0.1 x (specified accuracy) per °C [0°C to 19°C (32°F to 66°F), 28°C to 50° C(82°F to 122°F)]
APO (Auto Power Off) : Approx. 30 minutes
Power : 9V, NEDA 1604A, IEC 6LR61 9V alkaline battery
Battery life : 150 hours typical alkaline (SC260)
Low battery indication : Battery icon blinks and "LO.bt" is displayed when the battery voltage drops below the operating level
Dimensions : 205.5mm(H) x 67.4mm(W) x 45.1mm(D)
Weight : Approx. 265g including battery
Altitude : Up to 6562 ft (2000m)
Overload protection : 600 VDC or 600VAC rms unless otherwise stated
Test leads : Use UL listed test leads that comply to UL61010-031 rated CATIII 600V or above. Included test leads are gold-plated and have removable safety caps


Video


Q & A

Does this fieldpiece sc260 clamp meter measure millivolts?

No, the SC260 measures in V with the available ranges of 4V, 40V, 400V, and 600V with a resolution of 0.001V.

Does this fieldpiece meter measure frequency (Hertz)?

No, the SC260 cannot measure frequency, but the Fieldpiece SC440 does.

Does this clamp meter measure Inrush?

No, the SC260 cannot measure Inrush, but the Fieldpiece SC440 does.

Does this meter measure microamps?

No, the SC260 cannot measure in microamps, but the SC220 can.

Where is it made?

Designed in the US, made in Taiwan.

Can the meter measure Amperage and Temperature simultaneously?

No, the SC260 will only perform measurements for one unit at a time.


Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
D&D
Great product, tough meter

Great compact meter, perfect size, does the job.
